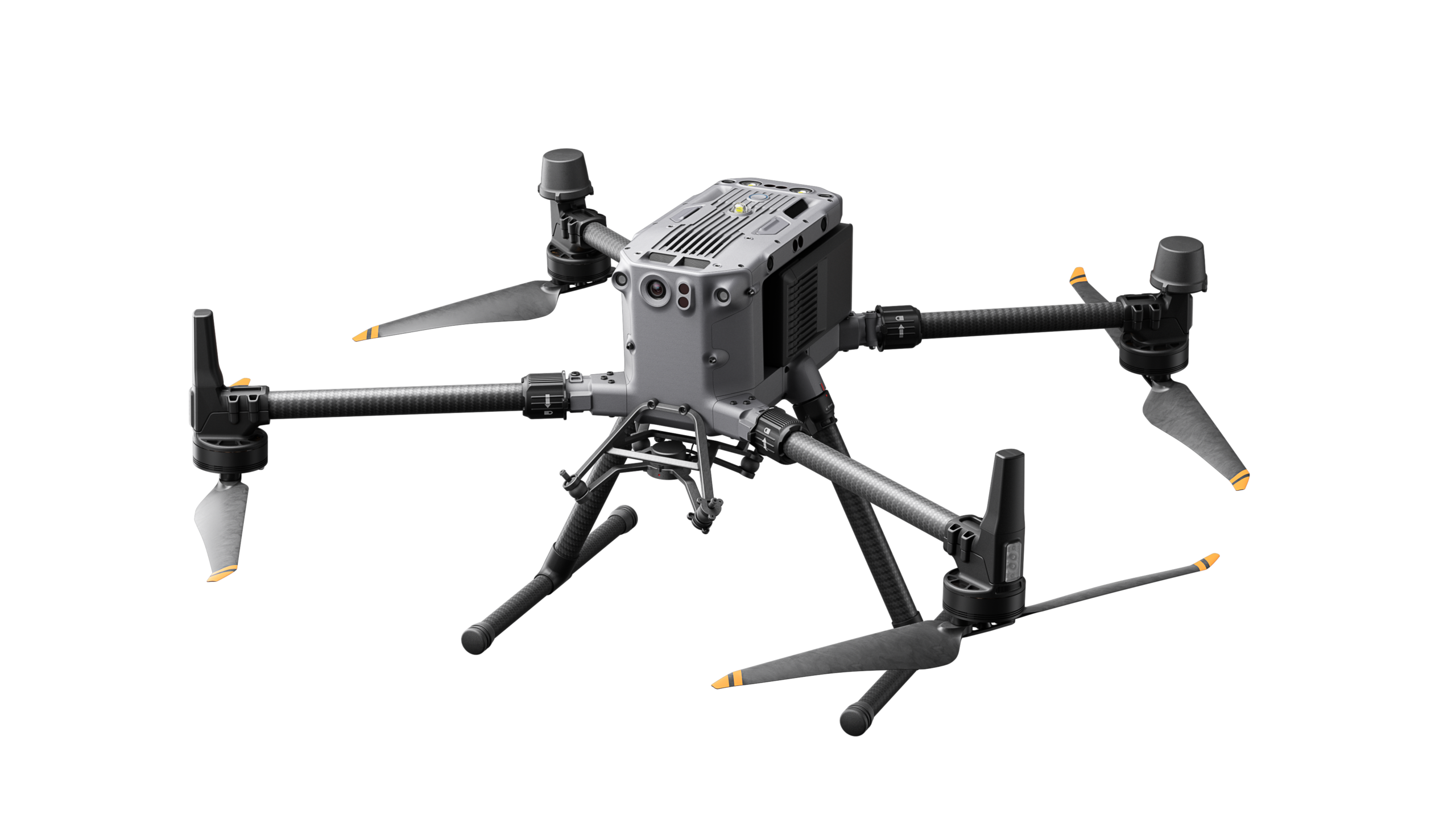

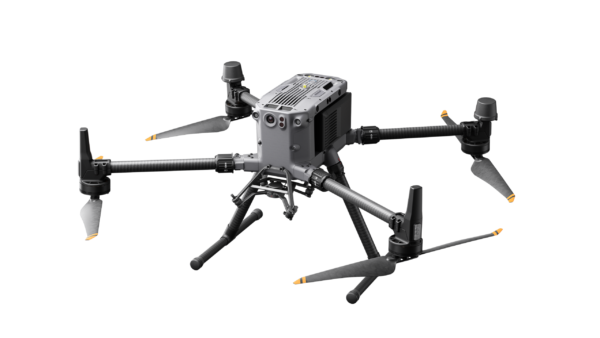

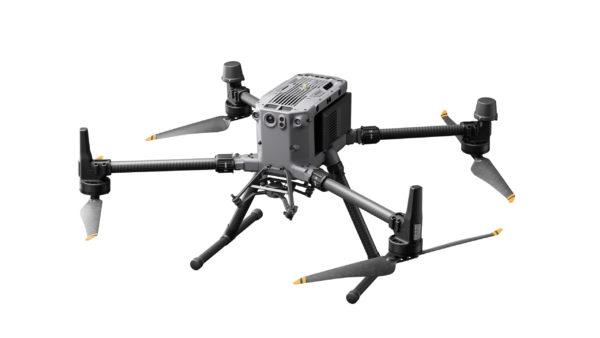

DJI M350 RTK Drone / UAV
Request For Quote
The Matrice 350 RTK, an updated flagship drone platform, raises the bar for the sector. This next-generation drone platform includes robust payload and expansion capabilities, an all-new video transmission system and control experience, an improved battery system, and more extensive safety features. It is totally capable of giving any aerial action newfound strength.
DJI M350 RTK Drone & UAV
Next-generate Flagship DJI drone platfrom
DJI M350 Specs
Aircraft
Remote Controller
Video Transmission
Safety Features
Aircraft
Dimensions (unfolded, without propellers)
810×670×430 mm (L×W×H)
Dimensions (folded, with propellers)
430×420×430 mm (L×W×H)
Diagonal Wheelbase
895 mm
Weight (with single downward gimbal)
Without batteries:
Approx. 3.77 kg
With two TB65 batteries:
Approx. 6.47 kg
Single Gimbal Damper’s Max Payload
960 g
Max Takeoff Weight
9.2 kg
Operating Frequency
2.4000-2.4835 GHz
5.150-5.250 GHz (CE: 5.170-5.250 GHz)
5.725-5.850 GHz
In some countries and regions, the 5.1GHz and 5.8GHz frequency bands are prohibited, or the 5.1GHz frequency band is only allowed for indoor use. Please refer to local laws and regulations for more information.
Transmitter Power (EIRP)
2.4000-2.4835 GHz:
< 33 dBm (FCC)
< 20 dBm (CE/SRRC/MIC)
5.150-5.250 GHz (CE: 5.170-5.250 GHz):
< 23 dBm (CE)
5.725-5.850 GHz:
< 33 dBm (FCC/SRRC)
< 14 dBm (CE)
Hovering Accuracy (with moderate or no wind)
Vertical:
±0.1 m (with vision positioning)
±0.5 m (with GNSS positioning)
±0.1 m (with RTK positioning)
Horizontal:
±0.3 m (with vision positioning)
±1.5 m (with GNSS positioning)
±0.1 m (with RTK positioning)
RTK Positioning Accuracy (RTK FIX)
1 cm + 1 ppm (horizontal)
1.5 cm + 1 ppm (vertical)
1.5 cm + 1 ppm (vertical)
Max Angular Velocity
Pitch: 300°/s
Yaw: 100°/s
Yaw: 100°/s
Max Pitch Angle
30°
When in N mode and with the forward vision system enabled: 25°.
When in N mode and with the forward vision system enabled: 25°.
Max Ascent Speed
6 m/s
Max Descent Speed (vertical)
5 m/s
Max Tilted Descent Speed
7 m/s
Max Horizontal Speed
23 m/s
Max Flight Altitude
5000 m
When using the 2110s propellers and with the takeoff weight ≤ 7.4 kg.
7000 m
When using the 2112 High-Altitude Low-Noise Propellers and with the takeoff weight ≤ 7.2 kg.
Max Wind Speed Resistance
12 m/s
Max Flight Time
55 minutes
Measured with Matrice 350 RTK flying at approximately 8 m/s without payloads in a windless environment until the battery level reached 0%. Data is for reference only. Actual usage time may vary depending on the flight mode, accessories, and environment. Please pay attention to reminders in the app.
Measured with Matrice 350 RTK flying at approximately 8 m/s without payloads in a windless environment until the battery level reached 0%. Data is for reference only. Actual usage time may vary depending on the flight mode, accessories, and environment. Please pay attention to reminders in the app.
Supported DJI Gimbals
Zenmuse H20, Zenmuse H20T, Zenmuse H20N, Zenmuse P1, and Zenmuse L1
Third-Party Payload
Supports only certified payloads developed based on DJI Payload SDK.
Supported Gimbal Configurations
Single downward gimbal
Single upward gimbal
Dual downward gimbals
Single downward gimbal + single upward gimbal
Dual downward gimbals + single upward gimbal
Single upward gimbal
Dual downward gimbals
Single downward gimbal + single upward gimbal
Dual downward gimbals + single upward gimbal
Ingress Protection Rating
IP55
The IP rating is not permanently effective and may decrease due to product wear and tear.
The IP rating is not permanently effective and may decrease due to product wear and tear.
Global Navigation Satellite System
GPS + GLONASS + BeiDou + Galileo
Operating Temperature
-20° to 50° C (-4° to 122° F)
Remote Controller
Screen
7.02-inch LCD touchscreen; resolution: 1920×1200; max brightness: 1200 nits
Weight
Approx. 1.25 kg (without WB37 battery)
Approx. 1.42 kg (with WB37 battery)
Approx. 1.42 kg (with WB37 battery)
Global Navigation Satellite System
GPS + Galileo + BeiDou
Built-in Battery
Type: Li-ion (6500 mAh@7.2 V)
Charging Type: Use the battery station or USB-C fast charger with a max power of 65 W (max voltage of 20 V).
Charging Time: 2 hours
Chemical System: LiNiCoAlO2
Charging Type: Use the battery station or USB-C fast charger with a max power of 65 W (max voltage of 20 V).
Charging Time: 2 hours
Chemical System: LiNiCoAlO2
External Battery (WB37 Intelligent Battery)
Capacity: 4920 mAh
Voltage: 7.6 V
Type: Li-ion
Energy: 37.39 Wh
Chemical System: LiCoO2
Voltage: 7.6 V
Type: Li-ion
Energy: 37.39 Wh
Chemical System: LiCoO2
Ingress Protection Rating
IP54
Operating Time
Built-in Battery: approx. 3.3 hours
Built-in Battery + External Battery: approx. 6 hours
Built-in Battery + External Battery: approx. 6 hours
Operating Temperature
-20° to 50° C (-4° to 122° F)
Operating Frequency
2.4000-2.4835 GHz
5.725-5.850 GHz
5.725-5.850 GHz
Transmitter Power (EIRP)
2.4000-2.4835 GHz:
< 33 dBm (FCC)
< 20 dBm (CE/SRRC/MIC)
5.725-5.850 GHz:
< 33 dBm (FCC)
< 14 dBm (CE)
< 23 dBm (SRRC)
Wi-Fi Protocol
Wi-Fi 6
Wi-Fi Operating Frequency
2.4000-2.4835 GHz
5.150-5.250 GHz
5.725-5.850 GHz
5.150-5.250 GHz
5.725-5.850 GHz
Bluetooth Protocol
Bluetooth 5.1
Bluetooth Operating Frequency
2.4000-2.4835 GHz
Video Transmission
Video Transmission System
DJI O3 Enterprise Transmission
Antenna
4 video transmission antennas, 2T4R
Max Transmission Distance (unobstructed, free of interference)
20 km (FCC)
8 km (CE/SRRC/MIC)
8 km (CE/SRRC/MIC)
Max Transmission Distance (with interference)
Low Interference and Obstructed by Buildings: approx. 0-0.5 km
Low Interference and Obstructed by Trees: approx. 0.5-3 km
Strong Interference and Unobstructed: urban landscape, approx. 1.5-3 km
Medium Interference and Unobstructed: suburban landscape, approx. 3-9 km
Low Interference and Unobstructed: suburb/seaside, approx. 9-20 km
Measured with FCC compliance in unobstructed environments with typical interference at a flight altitude of approximately 120 m. Data is for reference only. The actual transmission distance may vary depending on the environment’s obstruction and interference conditions. Please pay attention to reminders in the app.
Low Interference and Obstructed by Trees: approx. 0.5-3 km
Strong Interference and Unobstructed: urban landscape, approx. 1.5-3 km
Medium Interference and Unobstructed: suburban landscape, approx. 3-9 km
Low Interference and Unobstructed: suburb/seaside, approx. 9-20 km
Measured with FCC compliance in unobstructed environments with typical interference at a flight altitude of approximately 120 m. Data is for reference only. The actual transmission distance may vary depending on the environment’s obstruction and interference conditions. Please pay attention to reminders in the app.
Safety Features
Vision System
Obstacle Sensing Range
Forward/Backward/Left/Right: 0.7-40 m
Upward/Downward: 0.6-30 m
Upward/Downward: 0.6-30 m
FOV
Forward/Backward/Downward: 65° (horizontal), 50° (vertical)
Left/Right/Upward: 75° (horizontal), 60° (vertical)
Left/Right/Upward: 75° (horizontal), 60° (vertical)
Operating Environment
Surfaces with discernible patterns and adequate lighting (lux > 15)
Infrared Sensing System
Obstacle Sensing Range
0.1-8 m
FOV
30° (±15°)
Operating Environment
Large, diffuse, and reflective obstacles (reflectivity > 10%)
LED Auxiliary Light
Effective Illumination Distance
5 m
Illumination Type
60 Hz, solid glow
FPV Camera
Resolution
1080p
FOV
142°
Frame Rate
30fps
DJI M350 Battery And Charger Specs
Intelligent Flight Battery For DJI M350 RTK
Intelligent Battery Station
Intelligent Flight Battery For DJI M350 RTK
Model
TB65
Capacity
5880 mAh
Voltage
44.76 V
Type
Li-ion
Energy
263.2 Wh
Weight
Approx. 1.35 kg
Operating Temperature
-20° to 50° C (-4° to 122° F)
Ideal Storage Temperature
22° to 30° C (71.6° to 86° F)
Charging Temperature
-20° to 40° C (-4° to 104° F)
When the ambient temperature is below 5° C (41° F), the battery will trigger the auto-heating function. Charging at low temperatures may reduce battery life. It is recommended to charge at 15° to 35° C (59° to 95° F).
When the ambient temperature is below 5° C (41° F), the battery will trigger the auto-heating function. Charging at low temperatures may reduce battery life. It is recommended to charge at 15° to 35° C (59° to 95° F).
Charging Time
With a 220V power supply, it takes approximately 60 minutes to fully charge two TB65 Intelligent Flight Batteries and approximately 30 minutes to charge them from 20% to 90%.
With a 110V power supply, it takes approximately 70 minutes to fully charge two TB65 Intelligent Flight Batteries and approximately 40 minutes to charge them from 20% to 90%.
With a 110V power supply, it takes approximately 70 minutes to fully charge two TB65 Intelligent Flight Batteries and approximately 40 minutes to charge them from 20% to 90%.
Intelligent Battery Station
Dimensions
580×358×254 mm (L×W×H)
Net Weight
Approx. 8.98 kg
Compatible Stored Items
Eight TB65 Intelligent Flight Batteries
Four WB37 Intelligent Batteries
Four WB37 Intelligent Batteries
Input Voltage
100-120 VAC, 50-60 Hz
220-240 VAC, 50-60 Hz
220-240 VAC, 50-60 Hz
Max Input Power
1070 W
Output Power
100-120 V: 750 W
220-240 V: 992 W
220-240 V: 992 W
Operating Temperature
-20° to 40° C (-4° to 104° F)
DJI M350 vs DJI M300
Few upgrades have been made for DJI M350 RTK drone comparing to its precedecer M300 RTK.
