Smart City LiDAR Scanners & Solutions

Smart City LiDAR System Overview

Vehicle and road synergism System ( ITS / V2X ) is based on wireless communication, sensor detection and other technologies to obtain vehicle and road information. Through vehicle and road information interaction and sharing, it realizes intelligent collaboration and cooperation between vehicles and infrastructure, and achieves the goal of optimizing the use of system resources, improving road traffic safety and easing traffic congestion. This technology, beyond doubt, is the result of the integration of information technology with automobile and transportation industries.

smart city lidar solutions

Smart City LiDAR System Introduction

In order for cooperating with the vehicle and road, the R & D is based on the roadside LiDAR system, and it can cooperate with other multi-sensor to integrate road information, including pedestrians and objects, into V2X data network, it then broadcasts to the surrounding or further distance vehicles by the traffic control center server, and provides traffic information and traffic safety information prompts for vehicles.

smarty city lidar system architecture

Smart City LiDAR Scanners

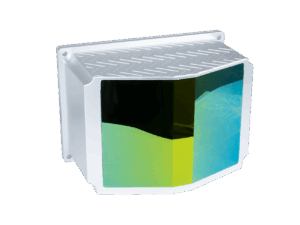

CH128 - 128 Channels, Hybrid Solid-state Technology

CH128 - V2X, AUTONOMOUS DRIVING LIDAR

Key Features:

  • Long range, high density, rich point-cloud
  • Automotive Grade design, stable structure
    and lower power consumption
  •  Mass production, high cost-effective

Specifications:

CH32 - 32 Channels, Hybrid Solid-State Technology

CH32 - V2X, ITS, AUTONOMOUS DRIVING, ROBOTICS

Key Features:

  • Long range, high density, rich point-cloud
  • Automotive Grade design, stable structure
    and lower power consumption
  •  Mass production, high cost-effective
  • Withstand harsh environment

Specifications:

CX32 - 32 Channels, 360 degrees Lidar Scanner

CX16 - V2X, ITS, AUTONOMOUS DRIVING, ROBOTICS

Key Features:

  • High point density, capable of generating approximately 320,000 3D point cloud coordinates per second
  • Wide field of view, with 360°horizontal FOV and 32°vertical FOV.
  • Compact size and light weight

Specifications:

CX16 - 16 Channels, 360 degrees Lidar Scanner

CX16 - V2X, ITS, AUTONOMOUS DRIVING, ROBOTICS

Key Features:

  • High point density, capable of generating approximately 320,000 3D point cloud coordinates per second
  • Wide field of view, with 360°horizontal FOV and 32°vertical FOV.
  • Compact size and light weight

Specifications:

Smart City LiDAR Solutionos

Smart Zebra Crossing

LS Smart Zebra Crossing system uses 3D LiDAR sensor to detect the pedestrians at the crossing areas, and send the signal to control the Zebra indicators to flush to warn the passing vehicles to slow down. It can also control the traffic signal when there is no pedestrian detect to increase the road using efficiency.

Smart Zebra Crossing system structure
Vehicle Contour detection

Vehicle Contour Measurement

Leishen LIDAR Vehicle contour detection system is a set of LiDAR and Algorithm to fulfill the smart traffic application,aiming at fully automatic, non-contact to detect the dimension (length, width, height) of the cargo,trucks,lorries running on the highway,as well as the vehicles inspection at Vehicle Administration Bureau.

It can also used for early warning before the bridges to alert the oversized vehicle crash into them.

Railway Intrusion Dection

The intrusion and limit of foreign object in train tracks occurs mostly in highway cross-railway sections, adjacent sections of highway and railway parallel, near construction sections, railway main lines, and sections in mountainous areas where landslide may occur. It has the characteristics of suddenness, irregularity and unpredictability. Leishen Intelligent has launched two types (Vehicle-mounted and Roadside Fixed-Checking Point) of intelligent monitoring solutions: intrusion and limit of foreign object in Railway, based on the train operation characteristics and relying on the leading lidar sensing technology. The solutions aim at problems that seriously threaten the safety of rail operations such as unidentified falling objects and personnel intrusion.

Railway Introsion Monitor
