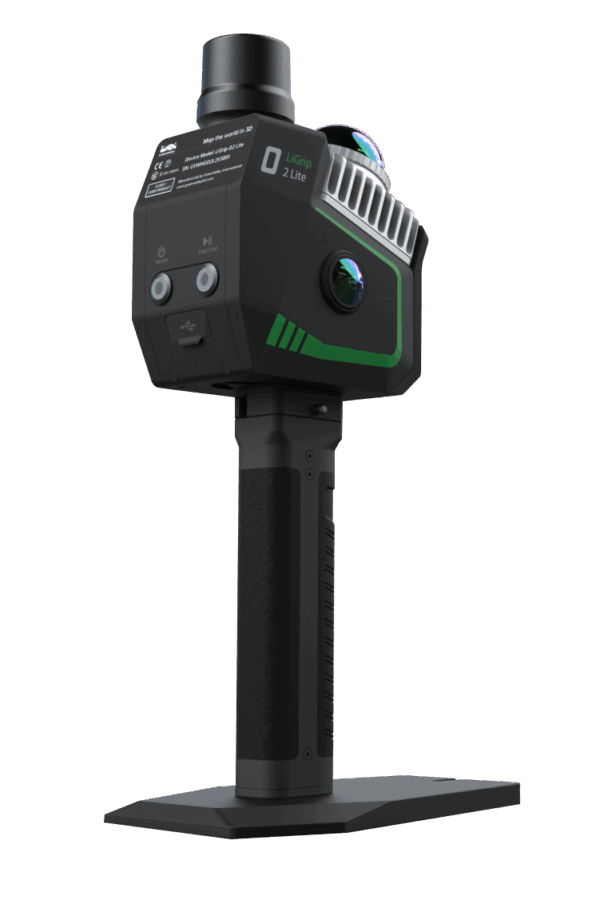

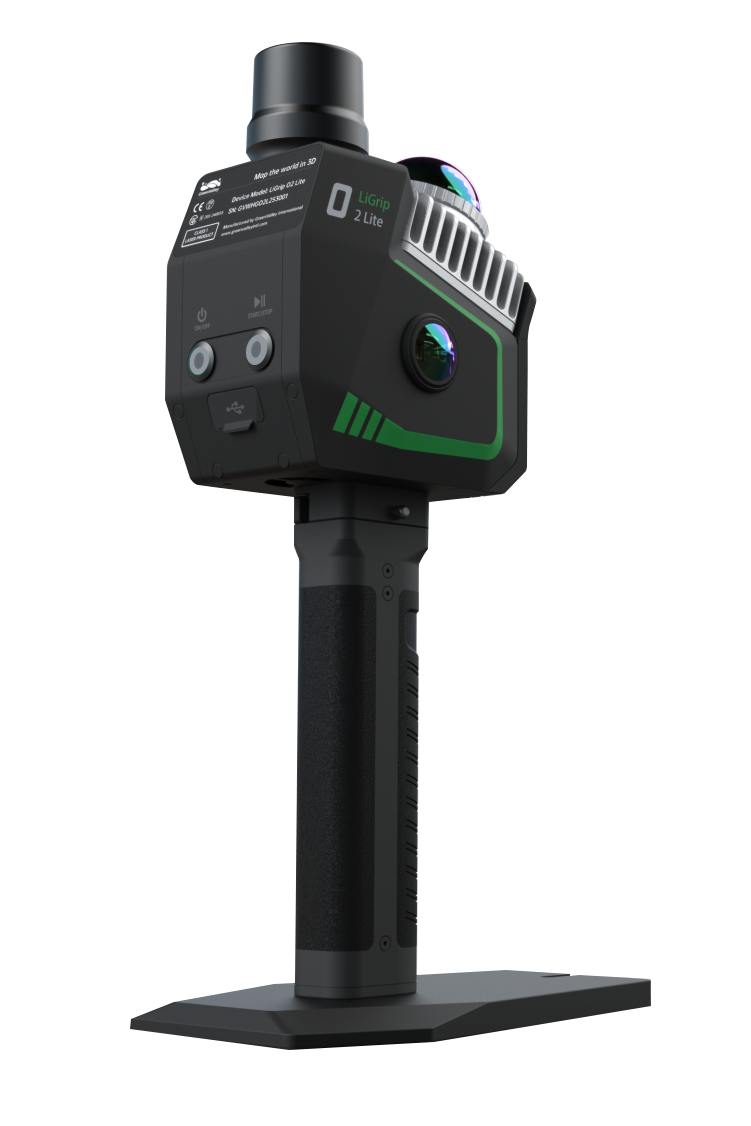

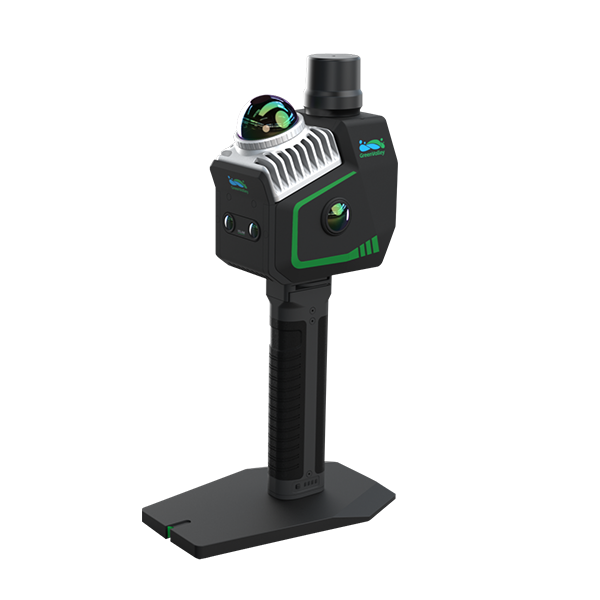

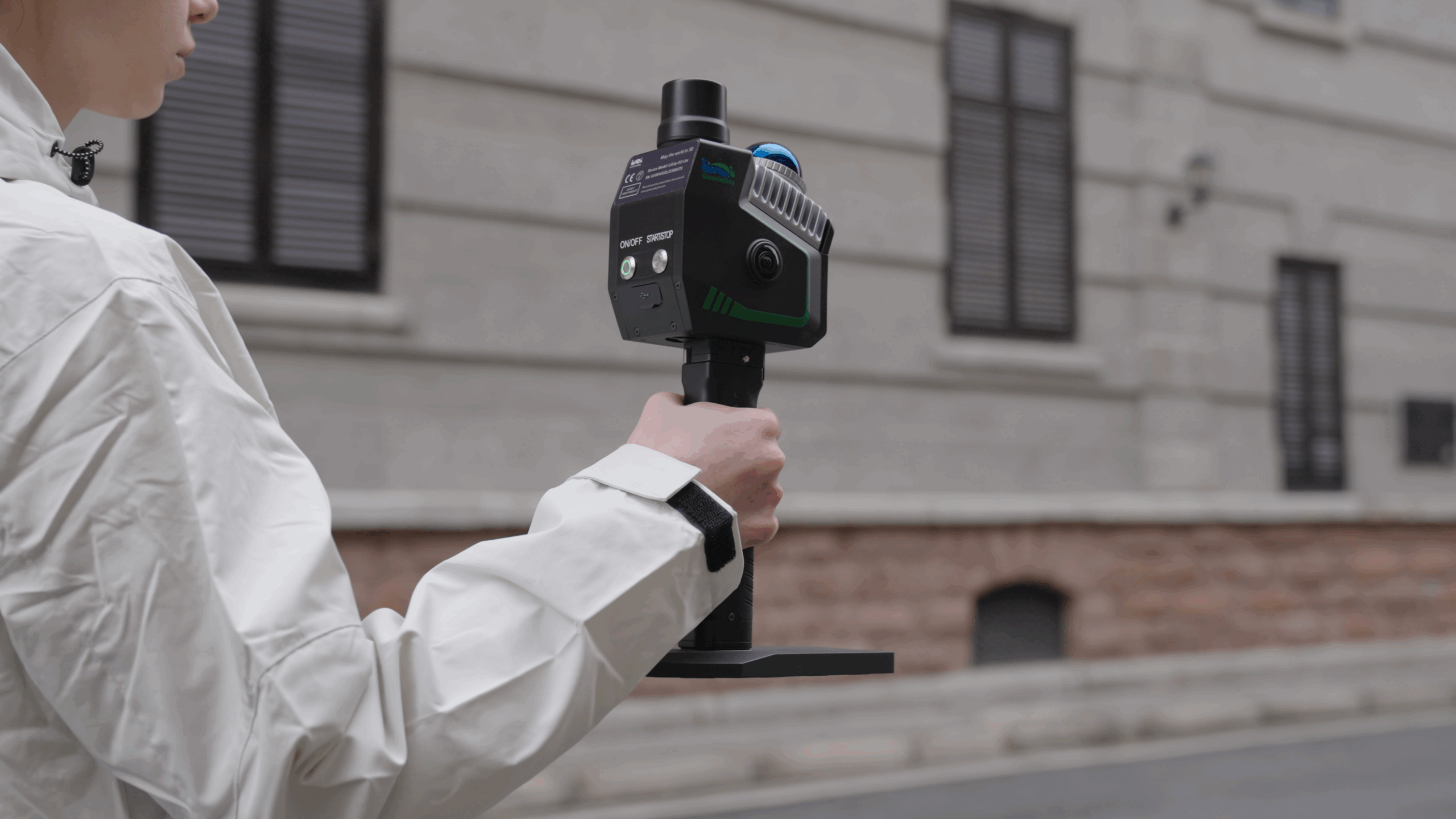

LiGrip O2 Lite Handheld LiDAR Scanner – 3D Gaussian Splatting and RTK, PPK Supported

All-encompassing scanning, fearless of open scenes; Highest accuracy in its class, fully meeting surveying and mapping applications.

MLF-SLAM (Multiple Localization Fusion-SLAM) fusion technology, it breaks through the bottleneck of data collection in featureless environments, achieving centimeter-level spatial positioning accuracy across all scenarios.

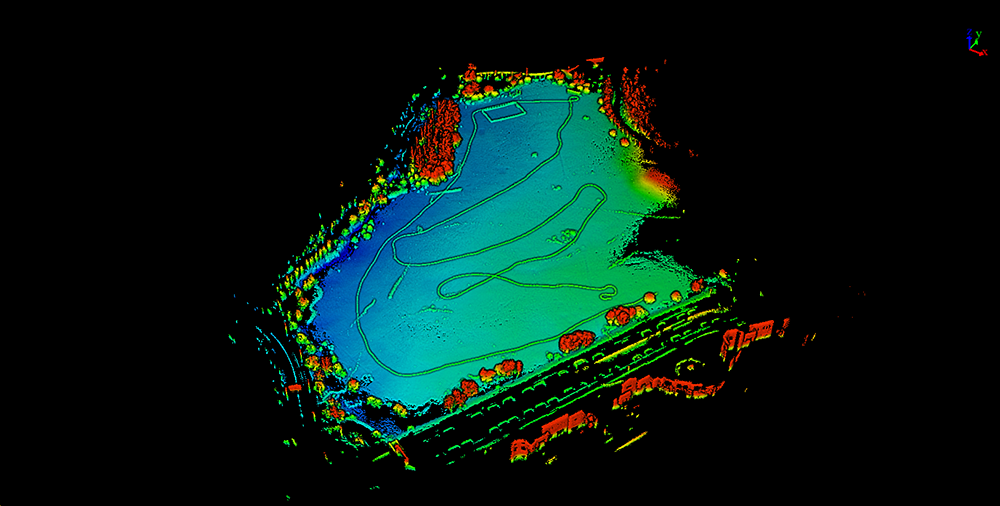

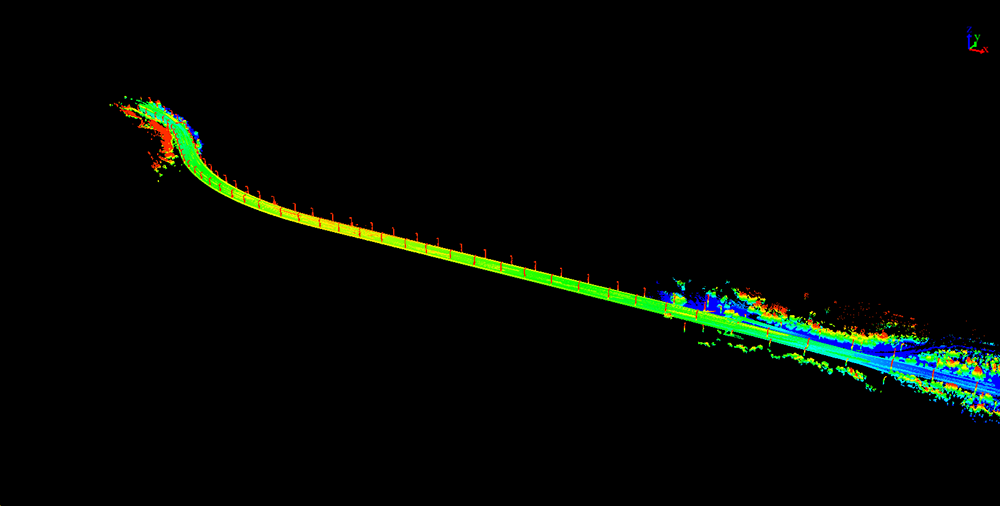

It solves the issue of map generation failures in conventional SLAM products in open environments such as rivers, lakes, beaches, and farmland, where features are sparse. Additionally, MLF-SLAM offers extremely fast mapping speeds, with the fastest ratio reaching 1:0.2.

Each LiGrip O2 Lite LiDAR scanner comes with 1 free license for LiDAR360 MLS SLAM module for getting las point cloud, mesh and 3DGS output.

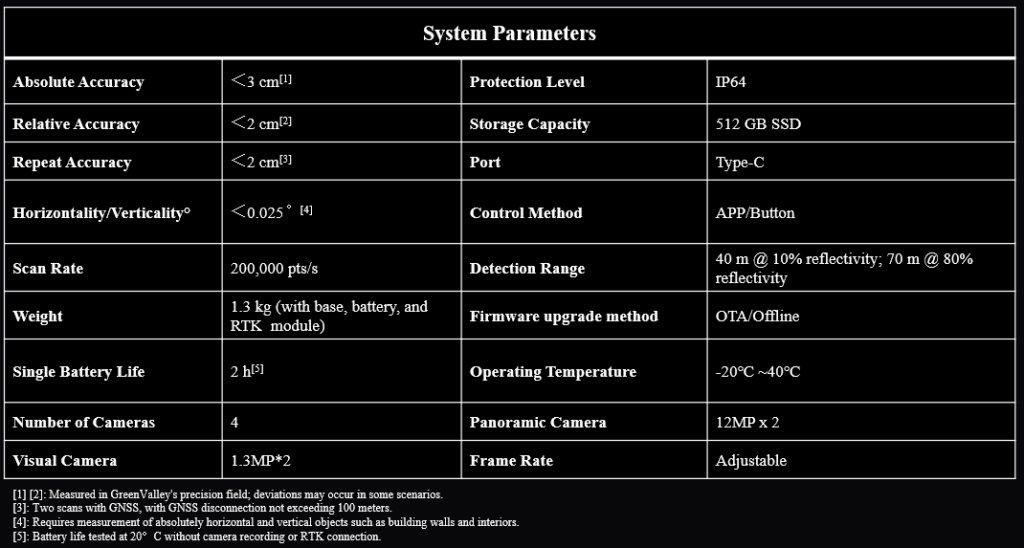

①Absolute accuracy: In areas with good satellite reception, the absolute accuracy can reach up to 3cm.
②Repeatability: In areas with good satellite coverage, data collected along the same path twice will have a discrepancy of less than 2cm.
③Horizontal/Vertical accuracy: For horizontal or vertical objects collected outdoors or indoors, the vertical and horizontal offset does not exceed 0.025°.

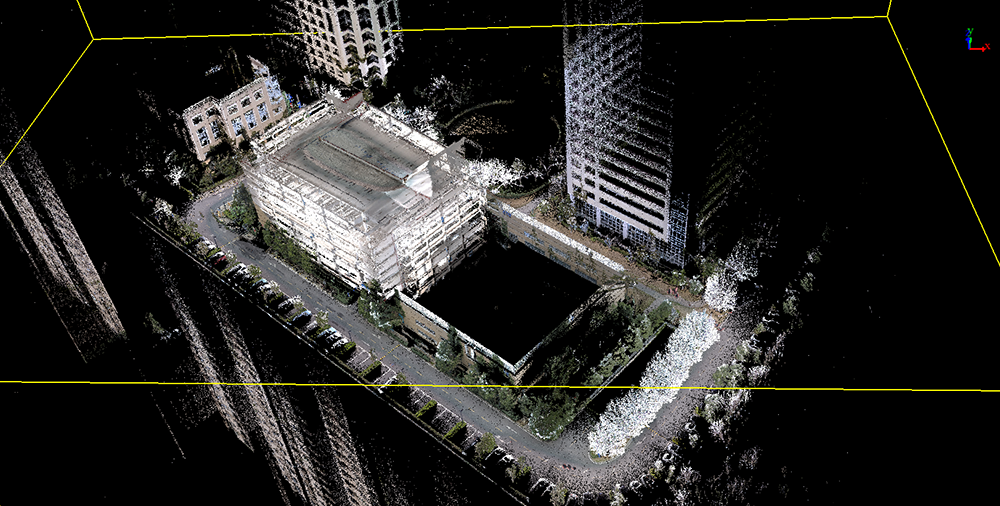

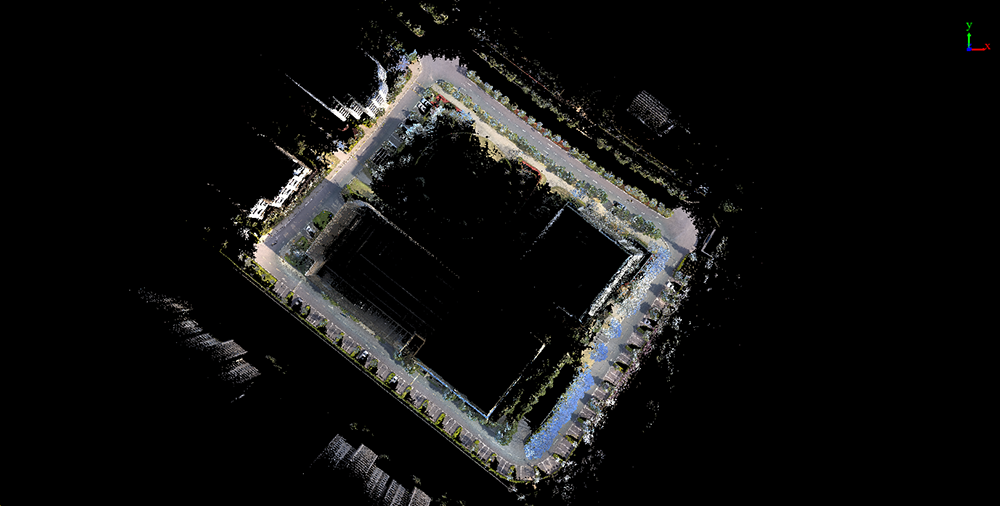

④Multi-level adaptability: Scanning rooms on more than 5 levels, misalignment is minimal, superior to other products in the same category.

In open scenes, we can achieve a processing speed of 1:0.2, and with coloring, we can reach a level of 1:2, which far exceeds peer levels. In non-open scenes, our process speed can reach up to 1:3 depending on the computer configuration.

We have implemented very good shielding, and our algorithms also eliminate fixed solutions affected by interference, ensuring the final data quality.

You can copy data directly by connecting the Type-C port to a computer.

We can directly generate 3DGS data, but you need to increase the camera’s recording frame rate and then use the LiDAR360MLS software to generate it. Support for MESH outputs will be available in the future, please follow our official updates.

Once RTK is configured, the device will automatically record the RTCM3 base station file
