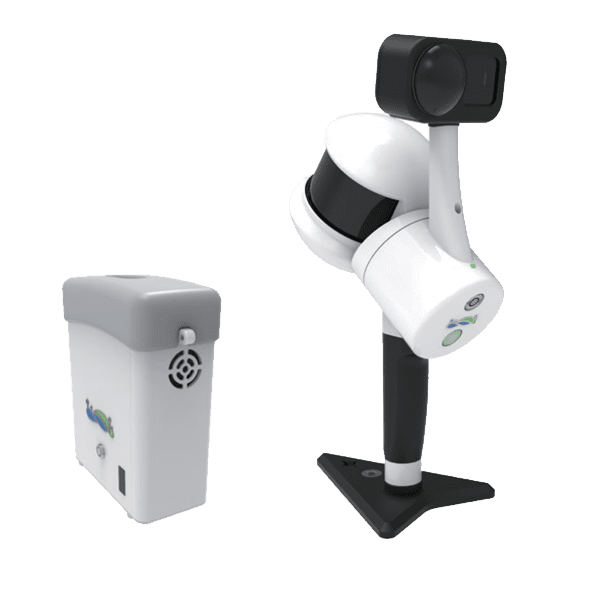

LiGrip H300 Handheld LiDAR Scanner + LiFuser Pre-processing Software

Request for Quote

LiGrip is a new series of products launched by GreenValley International. The product adopts a simplistic lightweight design compact body for convenient and versatile operating options. Boasting an integrated Hesai H20 LiDAR sensor and HD camera, LiGrip is a fit for many industry-specific projects. Multi-platform support, combining LiDAR and cutting-edge SLAM algorithms to achieve highly accurate HD mapping in even the most challenging environments.

Delivery Terms:

DAP, Global shipping

Parts included in the package:

1 unit LiGrip handheld LiDAR Scanner;

LiFuser Pre-processing software (Permanent License);

Warranty:

OEM Warranty, 1 year;

Lead Time:

2 weeks plus transport.

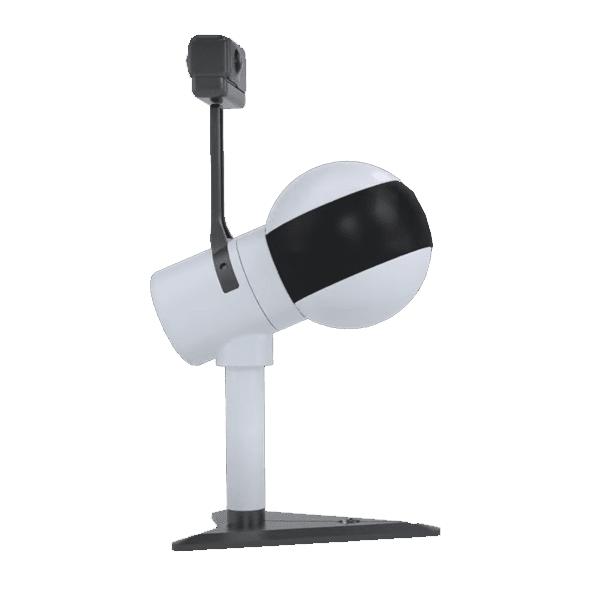

LiGrip - Handheld LiDAR Scanner Supporting Multi-Platform

Boasting an integrated Hesai H20 LiDAR sensor and HD camera, LiGrip is a 3D LiDAR mapping system for many industry-specific projects. Multi-platform support, combining LiDAR and cutting-edge SLAM algorithms to achieve highly accurate 3D mapping in even the most challenging environments.

Handheld

Vehicle-Mounted

Airborne

LIGRIP AIRBOURNE - handheld lidar scanner

Powered by an industry leading SLAM algorithm, whether you’re in narrow passageways, tunnels, rugged terrain, or other challenging GNSS restricted areas such as underground garages, high-precision point cloud results in all environments can be obtained with no worries.

Demo Video

Advantages of LiGrip Handheld LiDAR Scanner

Weather-Resistant Design

LiGrip Handheld LiDAR 3D mapping system is with an IP65 protection rating, the LiGrip is rugged and resistant to rain and dust

Lightweight

Minimalistic design with an Aluminum shell provides a light yet sturdy & portable LiDAR scanner system

Multi-Platform Compatibility

With add-on options allowing for adaptations as a UAV, Vehicle, or Backpack mount, the LiGrip is GreenValley's most versatile LiDAR system to date

Cutting-edge SLAM Algorithm

Utilizing GreenValley's very own Industry-leading SLAM (Simultaneous Localization And Mapping) algorithm, LiGrip provides real-time on-the-go accurate positioning as you map your environments

Modular Design

Modular design is adopted to support the installation of a variety of different types of sensors, and customers can Freely choose the module configuration according to your needs, including high-performance lasers, panoramic cameras and other multi-performance sensors, through the self-developed control system

One Stop Solution

Support GVI one-stop software solution, data can be seamlessly transferred to various pre-processing and post-processing software, and the solution is more convenient to implement

System Parameters of LiGrip Handheld LiDAR Scanner

LiDAR Parameters

Scanning Range:  300m

Size: L195mm×W125mm×H350mm, battery box: L134mm×W64.6mm×H167mm

Weight: 1.67kg (Including Tripod and Camera)

FOV°: 280°×360°

Scan Rate: 640,000pts/s

Scan Range: 120m

Resulting Data

Relative Accuracy: up to 1cm

Absolute Accuracy:  less than 5cm

Point Cloud Formats:  Las, Ply, LiData

Applications

handheld lidar 3d mapping
Tunnel
handheld lidar 3d mapping
Pile
Mining Tunnel

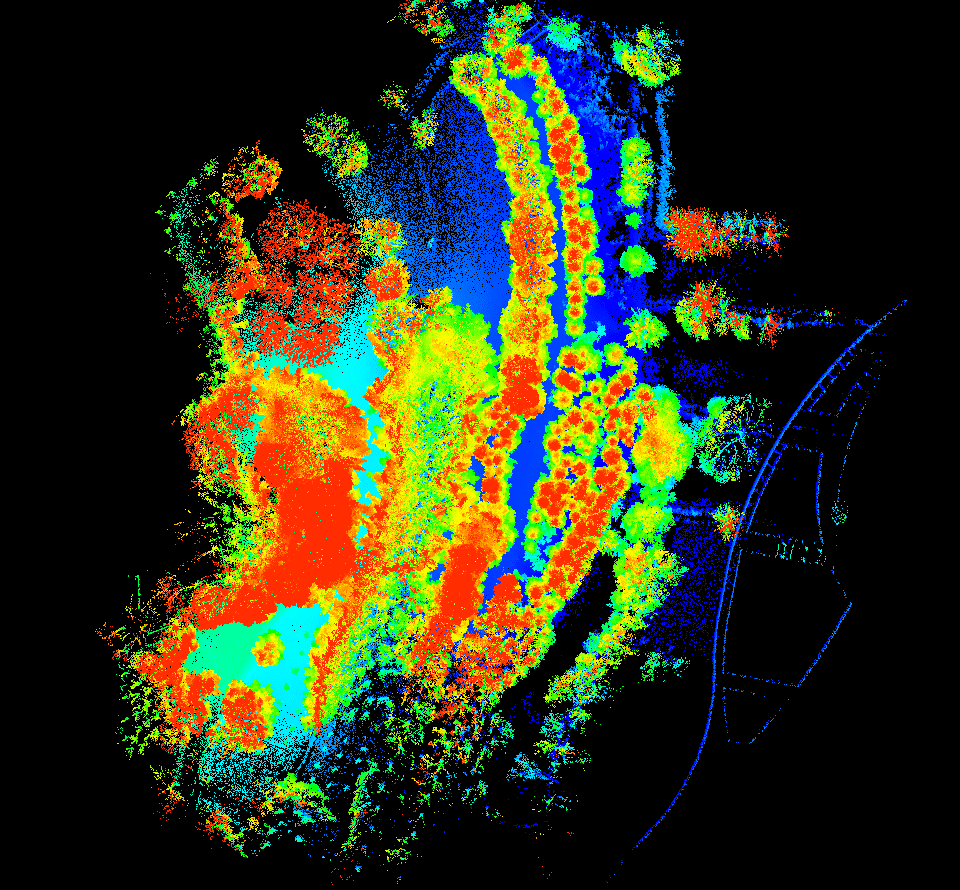

Forestry
portable lidar scanner
Building Information

Required Software for LiGrip Handheld LiDAR Scanner

Pre-processing Software

Date management, Post-processing and Analyzing Software
