LiBASE GNSS GPS RTK receiver rover and base station
handbook of LiBASE GNSS GPS RTK receiver rover and base station

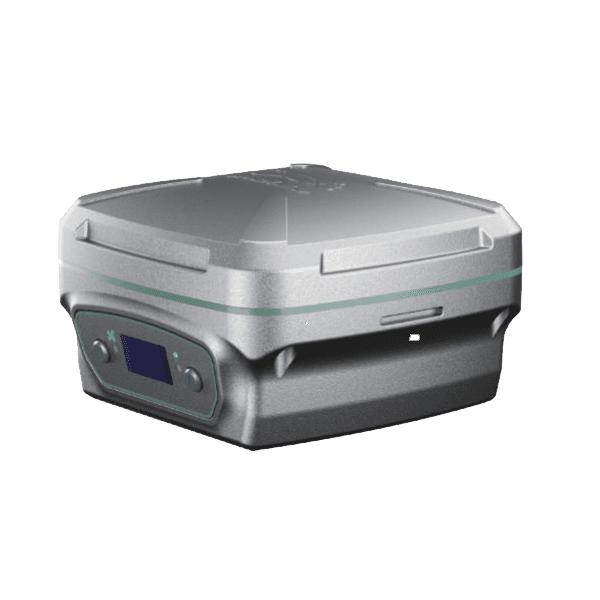

LiBase – GNSS RTK GPS Receiver for Both Rover & Base Station

US$2,916.00 Excl. GST/VAT

LiDAR Solutions has developed a state-of-the-art GNSS RTK GPS receiver that offers incredibly precise positioning data in real time, making it perfect for drone surveying, aerial inspections, and agricultural and industrial applications. This GNSS receiver has been designed to be set up in minimal time without any difficulty and will always offer exceptional signal reception, as its antenna can overcome many potential obstructions.

How Does a GNSS Receiver Work?

A GNSS (Global Navigation Satellite System) receiver is a device that determines the position of the user, velocity and precise time. This is achieved by processing the signals broadcasted by multiple satellites. As the satellites are constantly in motion, it’s necessary for a GNSS receiver to attain and track the signals it receives from satellites.

Fields a GNSS Receiver Can be Used In

  • Aviation
  • Maritime navigation
  • Surveying
  • Agriculture
  • Transportation

Price:

The price of a LiBase GNSS RTK GPS receiver only includes the receiver and handbook. The tripod or survey pole is not included here.

Delivery Terms:

DAP, Global shipping

Components included:

Item No. Item Number No.
1 LiBase GNSS Receiver 1
2 LiBase Carrying Case 1
3 UHF Antenna 1
4  GNSS Antenna Connector 1
5  Charger Adapter 1
6 LiBase GNSS Lithium Battery 2
7 7-Pin LEMO to DB9 Data Cable II 1
8 7-Pin LEMO to USB 2.0 Data Cable 1
9 Extension Pole 1
10 Bullet-DC to Alligator Clips 1
11 Metal Fixing Plate 1
12 LP1 controller 1
13 Bracket for LP1 1
14 LP1 Charger Adapter 1

Warranty:

OEM Warranty, 1 year;

Lead Time:

2 weeks plus transport.

Key Features of the LiBase GNSS RTK GPS Receiver – Rover & Base Station

LiBASE GNSS GPS RTK receiver rover and base station

Versatile & Multi-Mode

Can be used as either base station or rover, with and multi-modes available

  • Built-in/External Radio, as either rover or base station;
  • Host Network Mode, as the base station;
  • CORS mode, as the rover

Please download the Quick Start Guide for more details.

Multi-function

The following functions are available with LiBase:

  • Point Survey
  • Point Stake
  • CAD Stake
  • Curve Stake

INTELLIGENT INERTIAL NAVIGATION READY TO USE

LIBASE RTK GNSS RECEIVER

No leveling is needed at less than 60° inclination, points can be measured immediately, and the centimetre-level accuracy is maintained. The measurement efficiency increases drastically.

LIGHTWEIGHT AND COMPACT FULL MOBILITY

LIBASE RTK GNSS RECEIVER

At only 0.83kg with two batteries, it can be easily held with one hand and can be put into a pocket.

EXTREMELY FAST RTK GPS INITIALISATION AND GNSS CONNECTION SPEEDS

LIBASE RTK GNSS RECEIVER

Built-in K8 series modules, based on a 5-satellite 16-band service, full GNSS global support, achieving ultra-fast fixation; 40+ satellites are available at any location, greatly improving the fixation rate in blocked environments.

INTEGRATED TRANSCEIVER FOR POWERFUL FUNCTIONING

libase-1 GNSS Receiver

Full-feature RTK GPS application, supporting radio, network transmission and reception. Frequencies can be adjusted according to a user’s needs, achieving compatibility with various mainstream protocols/RTKs in the industry.

Designed for Rough Site Conditions

  • IP67 Design
  • Withstands topples from a 2m survey pole onto hard surfaces

LiBase GNSS GPS RTK Receiver Technical Parameters

General

Size: 12.3 × 12.3× 7.0cm
Weight: 834 g（with 2 batteries）
Controls: 1 function key, 1 power key/confirm key
Status indicators: 1 differential light, 1 satellite light
Display panel: 0.93-inch OLED Blue light display
Casing material: Aluminum magnesium alloy structure

GNSS

BDS: B1I, B2I, B3I, B1C, B2a
GPS: L1, L2P, L2C, L5
GLONASS: G1C, G2C, G1P, G2P
GALILEO: E1, E5a, E5b
QZSS: L1, L2C, L5
SBAS: L1C/A
SBAS Support: WAAS, EGNOS, MSAS, GAGAN

Channels

Number of Channels: 965

Measurement Performance & Accuracy

Static Precision:     Horizontal: 2.5mm+0.5ppm    Vertical: 5mm+0.5ppm

RTK Precision:        Horizontal: 8mm+1ppm          Vertical: 15mm+1ppm

RTD Precision:        Horizontal: 0.5m                   Vertical: 1.0m

SBAS differential positioning correction: <1.0 m 3D RMS
Signal Tracking Time: Cold start < 30s；Hot start <15s
RTK Initialization time: <10s
Signal Recapture: <1s
RTK Initial Reliability: ＞99.99%
RTK Tilt Compensated Accuracy: <2.5cm，±60°

Measurement Performance & Accuracy

Data Storage: 8GB
Data Type: CNB, RINEX, and more
Recording Rate: 1Hz, 2Hz, 5Hz, 10Hz, 20Hz (Max)
RTK data protocols: CMR, CMR+, RTCM2.x, RTCM3.x
NMEA output:

NMEA-0183/Compass (custom binary),
PJK plane coordinates






Communications

Built-in Network: 4G
Network RTK: VRS, FKP, MAC, NTRIP protocol support
Built-in transceiver: Broadband radio
Transmission: 0.5W, 1W, 2W
Communication Protocol: Farlink, Trimtalk450s, SOUTH, SOUTH+, SOUTHx, HUACE, Hi-target, Satel

Receive & transmit UHF: 410~470Mh, Channel spacing 12.5KHz
Over-air baud rate: 19.2kbps, 9.6kbps
Bluetooth®: 4.0 (BLE & BR/EDR)
WIFI: Supports WEB configuration, supports WEB data download, CDL7 radio, PDL radio (optional) and other high-power

Plug-in radio: Digital radios



Electrical Parameters

Accepted power supply: DC 6~28V
Charging: Use QC2.0 and QC3.0 chargers to charge and power the device, and self-start configuration after power-on

Operating time: Up to 12h
Power consumption: <2. 85W (mobile network mobile station)
Communication ports: 1 RS232 serial port and 1 USB port (7-pin LEMO header), Bluetooth

Baud rate: Expandable to 921，600bps



Environmental

Proof against water, sand, and dust: IP67
Drop/Vibration: Withstands topple from a 2 m survey pole onto hard surfaces. Withstands strong vibration (ISO9022-36-08 | MIL-STD 810G 514.6 Cat.24)

Temperature/Condensation: 100% hermetically sealed, condensation proof
Operating temperature: -30 ℃ ~ +65 ℃
Storage Temperature: -40 ℃ ~ +85 ℃

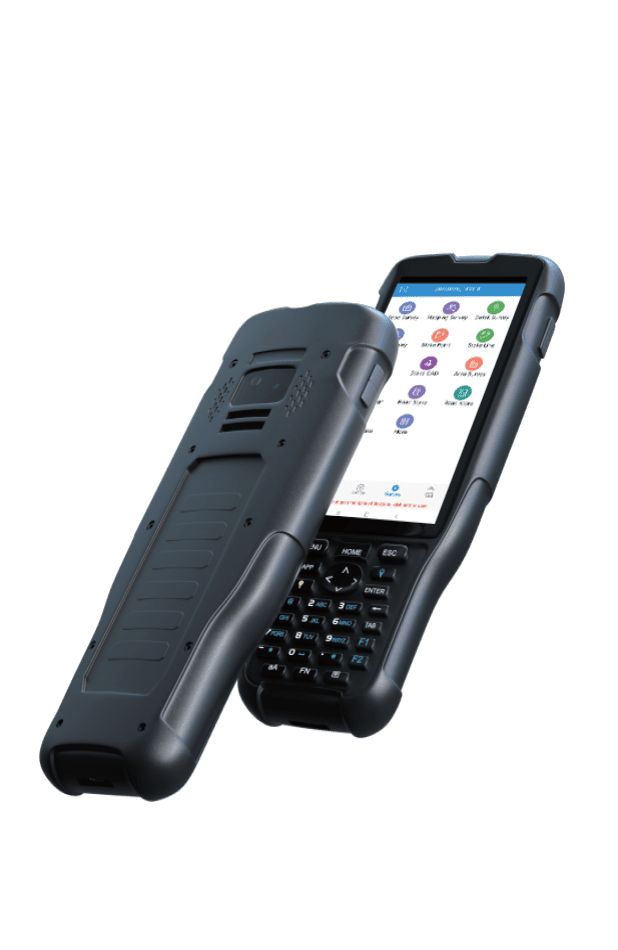

SYSTEM HANDBOOK (LP-1)

libase-1 GNSS Receiver
  • IP67 protection grade, resistance against the elements
  • 5-inch touch screen, 720*1280 resolution, clear visibility under sunlight
  • Built-in 7000mAh battery, fast charge <4h to full charge
  • quipped with an 8-core 2.0GHz processor, Android 8.1 operating system
  • Supports Bluetooth, dual-band WIFI, 4G full Netcom
  • 4GB+64GB storage, SD card support
  • Universal Type-C interface

Surveying Software - LiSurvey

Software of LiBASE GNSS GPS RTK receiver rover and base station
  • Based on Android system, one-click startup, adaptive to many file format
  • Supports many measurement modes, intelligent and easy calibration
  • Supports CAD/SHP base map file import, staekouts can be checked and used immediately
  • Roadway function support and road design table import
  • Remote assistance and troubleshooting
  • Real-time control of the work process
  • Field data cloud synchronization
  • Seamlessly connect with GreenValley’s own surveying software LiSurvey
  • Device management and real-time status monitoring
  • Real-time working position and trajectory
    monitoring

Documents for LiBase GNSS GPS RTK Receiver

Contact Us Today

Call LiDAR Solutions today on 0412 752 033 or contact us online to learn more about our GNSS receiver.
