TokNAV - Miniature GNSS Receiver - P8 Series - Global Shipping

TokNAV – Miniature GNSS Receiver – P8 Series – Global Shipping

US$2,000.00 – US$3,150.00 Excl. GST/VAT

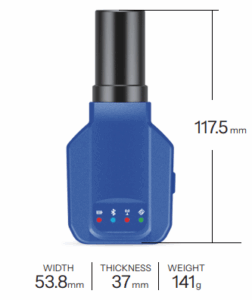

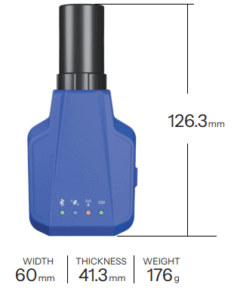

The P8 series is a minature & intelligent positioning terminal with IMU function, developed based on BDS high-precision positioning technology. The main unit is lightweight and compact, making it easy to carry around. With special function PPP (P8-Global), it also supports tracking of signals from all satellite constellations with 1408 channels, providing centimeter-level positioning accuracy. It caters to various measurement and layout tasks such as road construction, power line surveying, site leveling control, CAD applications, railway stakeout, and more.

Delivery Terms:

DDP, Australia;

DAP, Global shipping except Australia

Warranty:

OEM Warranty, 2 year;

Lead Time:

2 weeks plus transport.

Key Features Of TO68 Series GNSS Receiver

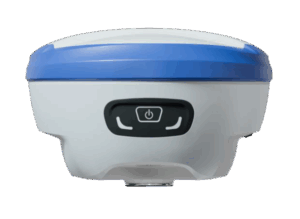

TokNAV TO68 portable GNSS receiver can be set up as both rover and base station with up to 1.5w radio. With its portable size Φ134mm*86mm and light weight (770g) , it can still operate up to 16 hours with single charge. And it also supports AR stakeout, Image Survey (TO68C) and laser measurement (TO68B).

If you only need a rover function GNSS receiver without AR, image or laser survey, please consider T5 series RTK Rover;

If you only need a basic base station and rover function GNSS receiver, please consider T10 Pro series GNSS Receiver;

If LCD touch screen function is required on site, please upgrade to T20 Pro;

If longer operation duration is required, please upgrade to T30 or T40 series;

✓ AR Real-Time Stakeout
✓ Full System GNSS Reception, up to 1408 channels
✓ 16 hours’ operation on a single charge
✓ Tilt measurement with built-in high precision IMU
✓ Integrated 4G and 1.5W radio enable

✓ IP68 design

✓ AR Real-Time Stakeout

✓ Laser Measurement
✓ Full System GNSS Reception, up to 1408 channels
✓ 16 hours’ operation on a single charge
✓ Tilt measurement with built-in high precision IMU
✓ Integrated 4G and 1.5W radio enable

✓ IP68 design

✓ AR Real-Time Stakeout

✓ Image survey
✓ Full System GNSS Reception, up to 1408 channels
✓ 16 hours’ operation on a single charge
✓ Tilt measurement with built-in high precision IMU
✓ Integrated 4G and 1.5W radio enable

✓ IP68 design

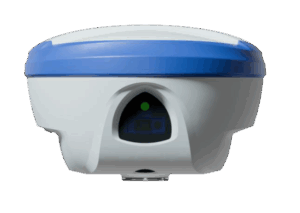

Laser Measurement (TO68B)

Equipped with a high-precision millimeter-level laser ranging module, combined with high-precision inertial navigation for accurate laser targeting in complex environments.

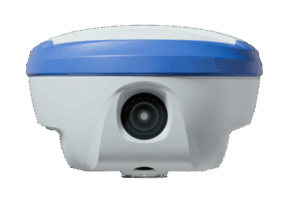

Image Surveying (TO68C)

Equipped with a 1/2.6-inch large base high-definition wide-angle camera, it integrates high-precision inertial navigation algorithms and works with high-performance Android handheld devices for high-precision image measurement.

AR Real-Time Stakeout

Utilizes a professional ultra-wide-angle camera to provide high-definition real-time plotting functionality, making layout tasks more accurate and convenient.

PPP Supported

Precise Point Positioning (PPP): Leverages precise satellite orbit/clock products for single-receiver positioning, which allows to acquire high precision position anywhere on earth without any subscription.

Full System GNSS Reception

The receiver integrates a high-precision positioning module, utilizing 1408 channels to support a comprehensive range of signals including BDS B1I/B2I/B3I/B1C/B2a/B2b(PPP), GPS L1/L2/L5, GLONASS L1/L2/L3, Galileo E1/E5a/E5b/E6(PPP), and QZSS L1/L2/L5.

Tilt Measurement

TO68 has the IMU module. Fast initialization and up to 60° inclination.

Combined Antenna

The new four in one antenna integrates GNSS, WIFI, Bluetooth and 4G, with smaller volume and better signal.

PPK Processing Supported

PPK processing is supported when there is no stable RTK data link available.

Long Endurance

Built-in high-capacity lithium battery ensures continuous working time of more than 16 hours under normal operation.

IP68 Design

Industrial design, solid magnesium alloy shell, in line with IP68 design requirements, safe and reliable.

4G Modem

T10Pro has an internal 4G Modem that operates with more cellular network signals. A fast internet connection is guaranteed.

Linux Intelligent System

ARM Cortex-A7 + Linux, the intelligent system platform, brings efficient computing and unlimited expansion of product functions to users.

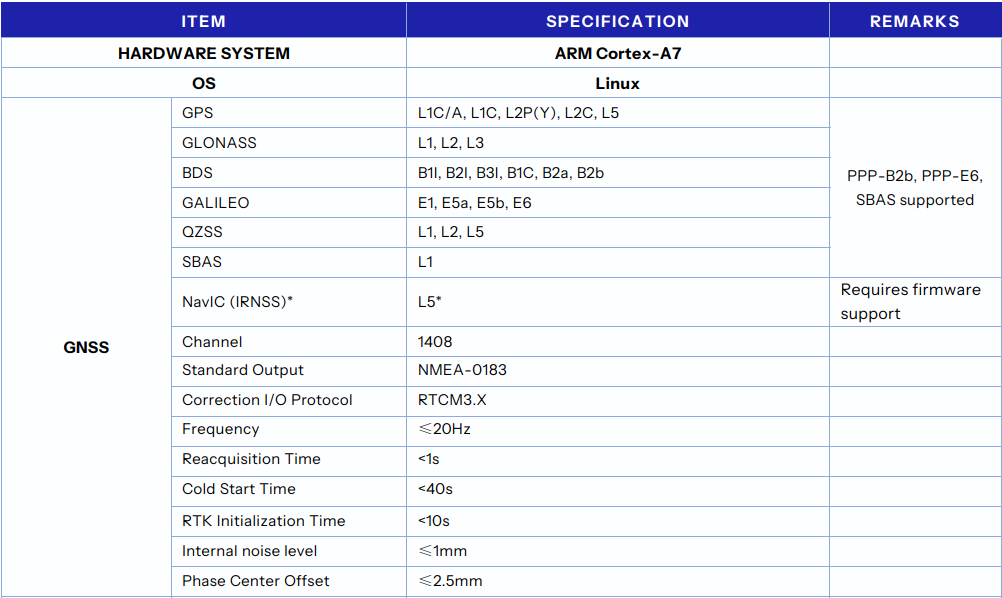

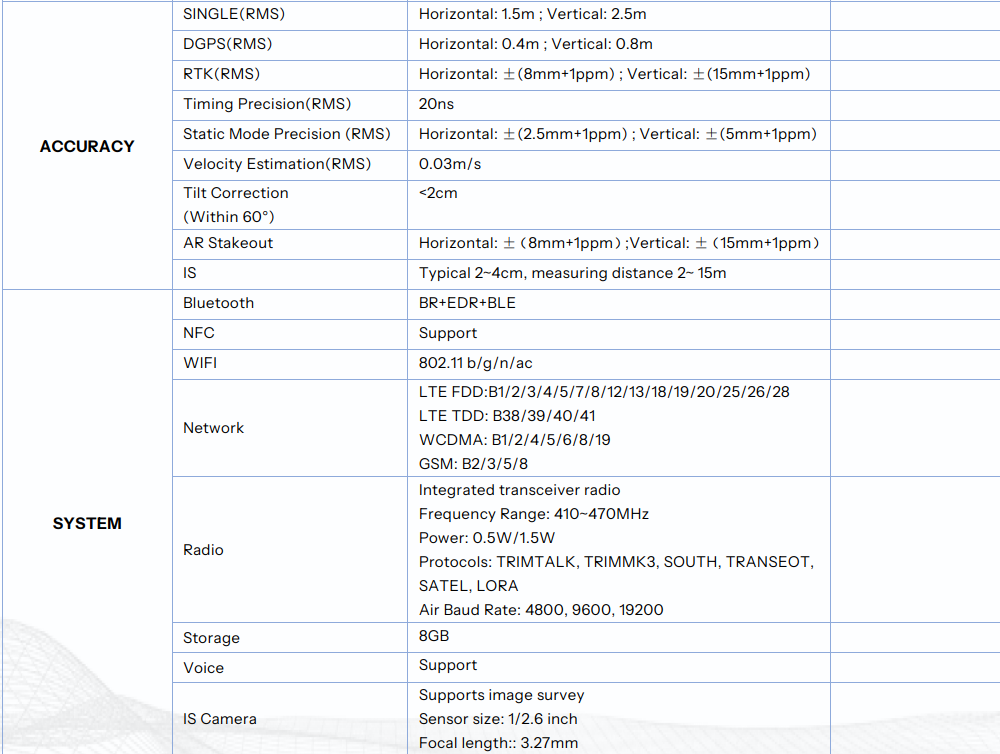

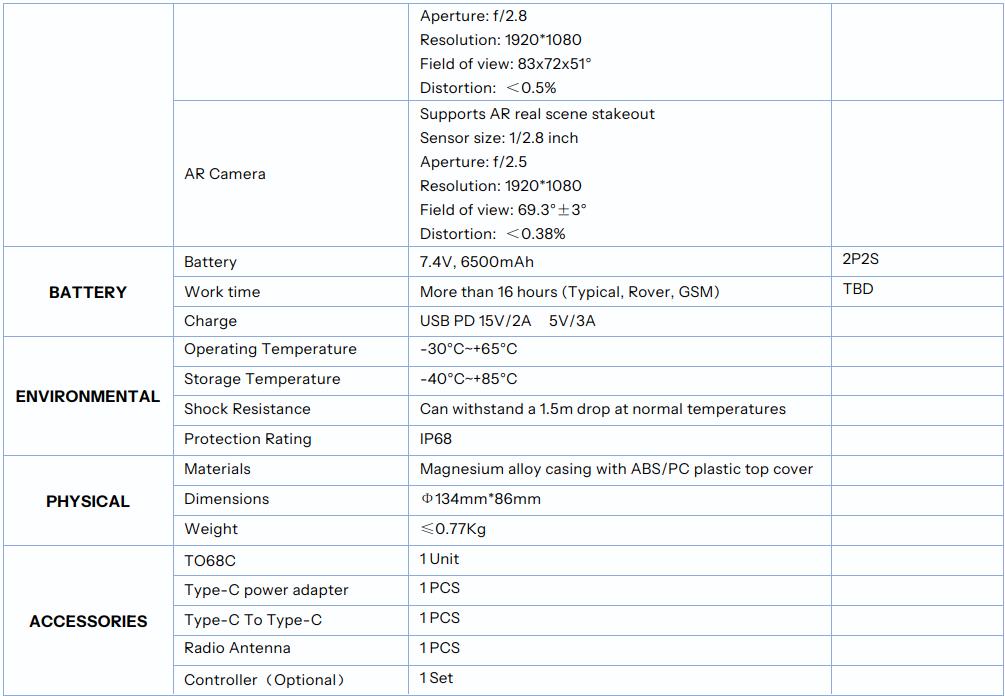

Technical Parameters - TO68C

Downloads & Tutorials

Brochure Download

TSurvey 2.0 Survey Software Tutorial

TO68 Series Unbox and Test Videos

TokNAV TO68 series operation videos are not available at this stage, however, it uses the same software which is Tsurvey 2.0 with T30 series receivers, so the operation procedure will be the same.
