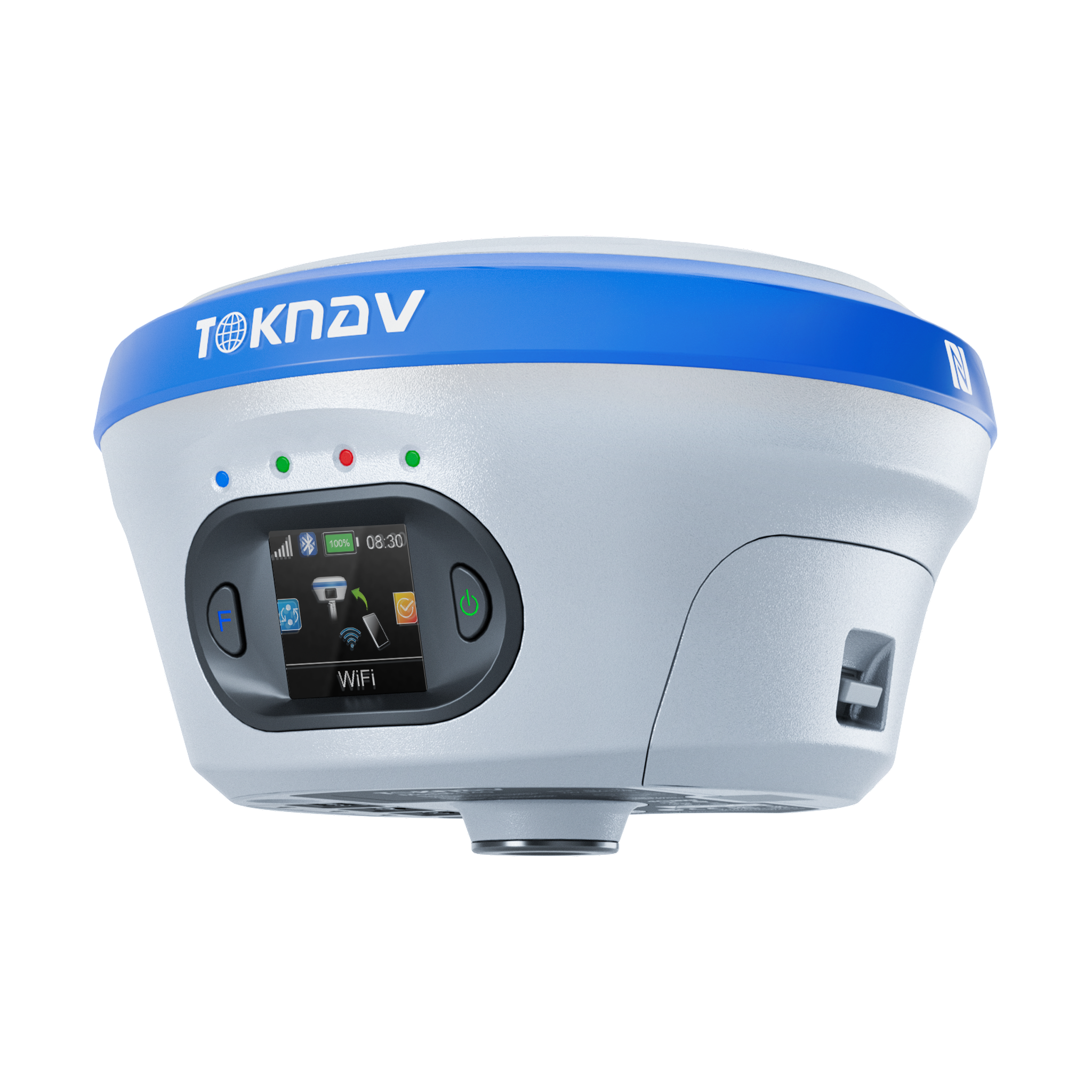

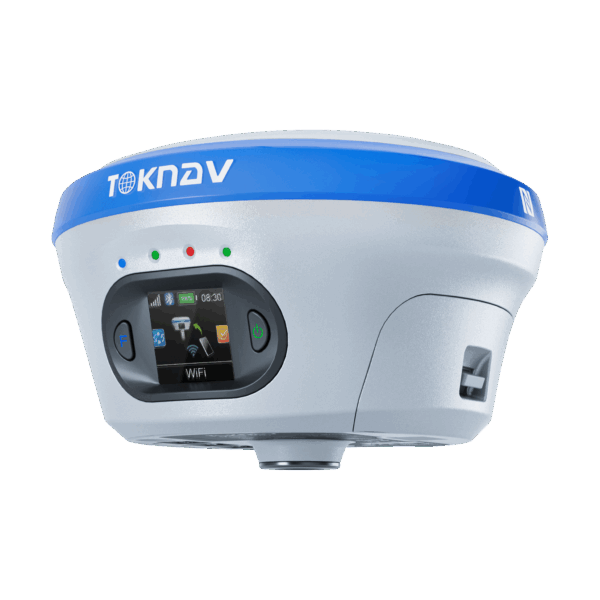

TokNAV – T40 GNSS Receiver – With Detachable Battery – Global Shipping

US$3,550.00US$4,150.00 Excl. GST/VAT

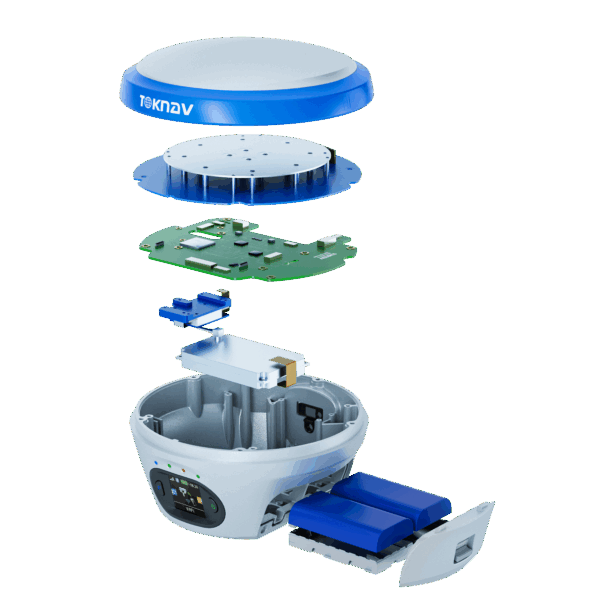

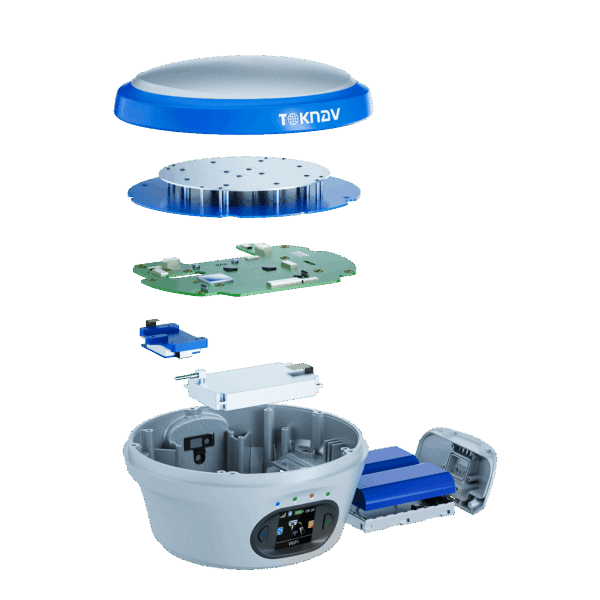

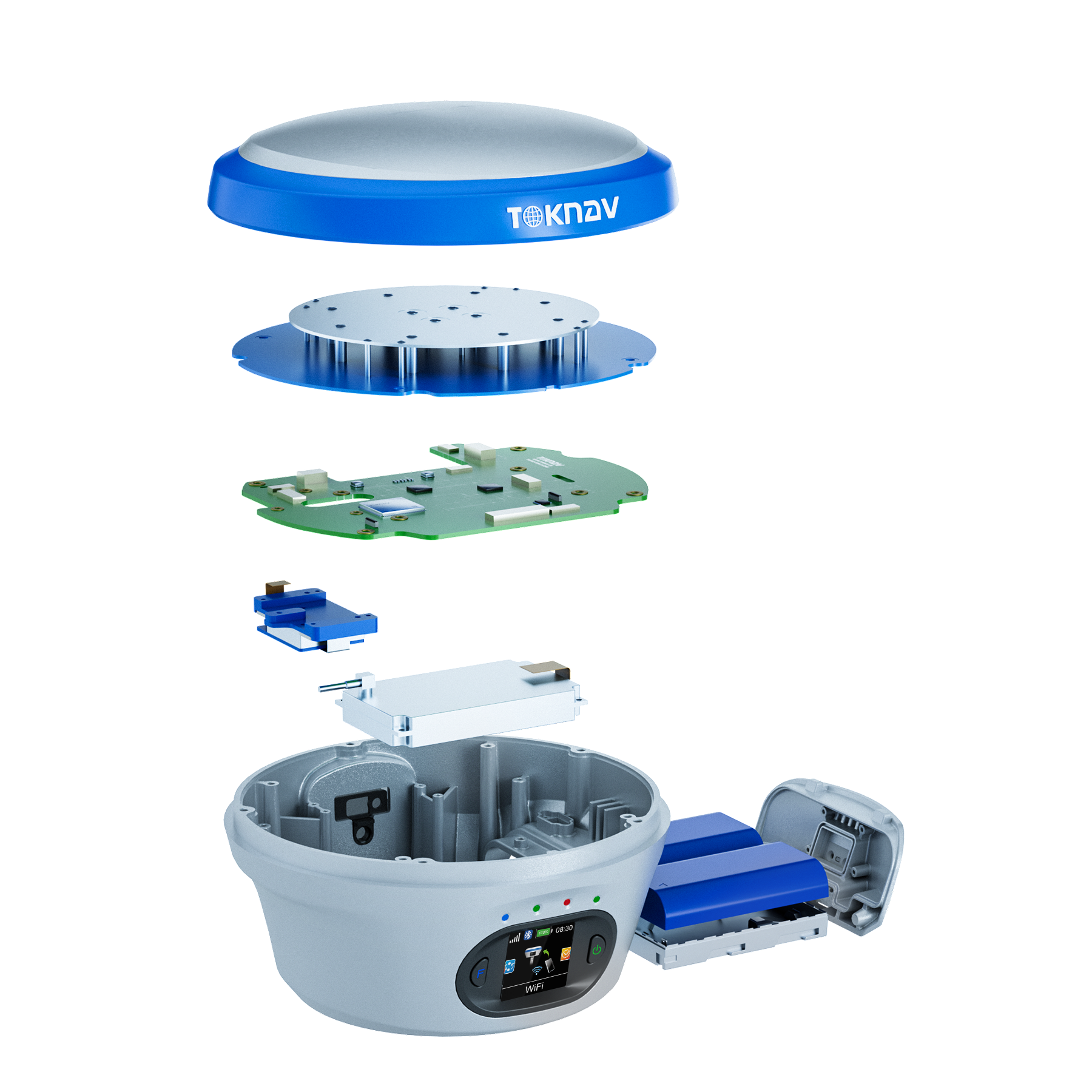

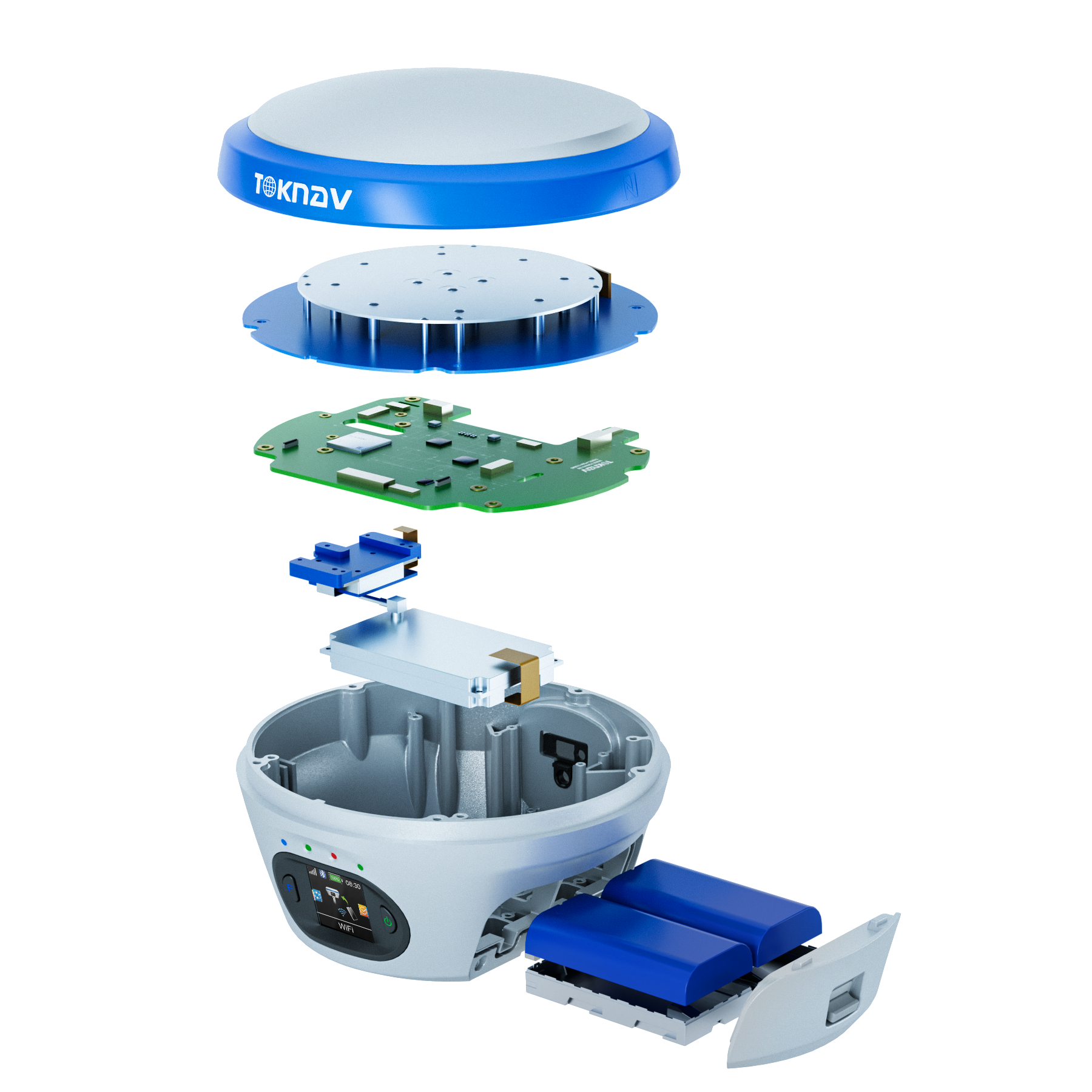

T40 is a versatile GNSS receiver equipped with dual-laser cameras. It integrates a high-precision positioning module, IMU, AR, laser technology, and laser visualization to enable high-precision positioning, tilt measurement, AR real-world staking, image surveying (T40 Pro) and visualized laser point measurement (T40).The receiver features a robust magnesium-aluminum alloy design, offering durability and reliability. It supports hot-swappable batteries, allowing quick recharging without power interruption, thereby extending operational time

Delivery Terms:

DDP, Australia;

DAP, Global shipping except Australia

Warranty:

OEM Warranty, 2 year;

Lead Time:

2 weeks plus transport.

US$4,150.00 Excl. GST/VAT
US$3,550.00 Excl. GST/VAT

Key Features Of T40 GNSS Receiver

TokNAV T40  GNSS receiver can be set up as both rover and base station with up to 5w radio. With its large volume battery on board, it can operate up to 48 hours with single charge. And it also supports AR stakeout and laser measurement. It also supports detachable battery to achieve extended operation duration.

If you only need a rover function GNSS receiver, please consider T5 series RTK Rover;

If you only need a basic base station and rover function GNSS receiver, please consider T10 Pro series GNSS Receiver;

If LCD touch screen function is required on site, please upgrade to T20 Pro;

If  image survey are required for site application, please upgrade to T30 Pro or T40 Pro series;

T40

✓ AR Real-Time Stakeout
✓ ≤2.5cm 3D error within 5m range
✓ Expands the range of measurable objects.
✓ Integrates precise laser ranging with HD visualization.
✓ Supports dual removable powerful batteries for extended operation.

T40 Pro

✓ AR Real-Time Stakeout supported
✓ Error of 2-4cm within 2-15 meters
✓ Expands the range of measurable objects.
✓ Offers HD real-world stake out with AR technology.
✓ Supports dual removable powerful batteries for extended operation.

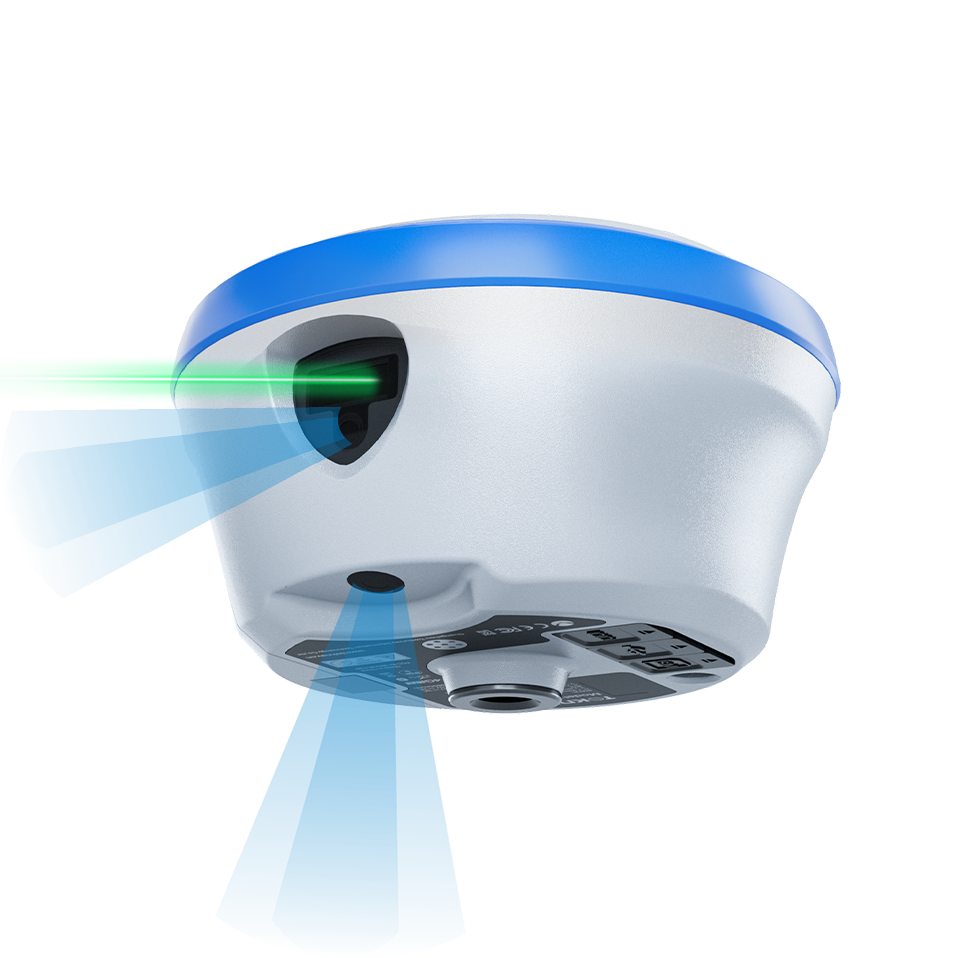

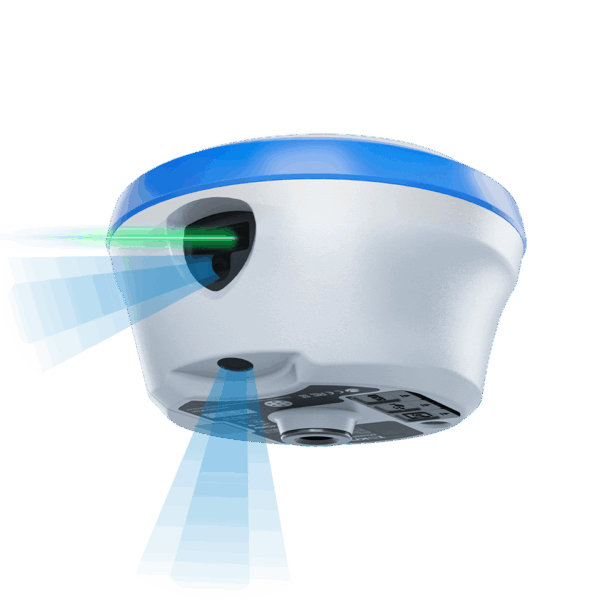

Laser Measurement (T40)

Equipped with a high-precision millimeter-level laser ranging module, combined with high-precision inertial navigation for accurate laser targeting in complex environments.

Image Surveying (T40 Pro)

Equipped with a 1/2.6-inch large base high-definition wide-angle camera, it integrates high-precision inertial navigation algorithms and works with high-performance Android handheld devices for high-precision image measurement.

AR Real-Time Stakeout

Utilizes a professional ultra-wide-angle camera to provide high-definition real-time plotting functionality, making layout tasks more accurate and convenient.

PPP Supported

Precise Point Positioning (PPP): Leverages precise satellite orbit/clock products for single-receiver positioning, which allows to acquire high precision position anywhere on earth without any subscription.

Full System GNSS Reception

The receiver integrates a high-precision positioning module, utilizing 1408 channels to support a comprehensive range of signals including BDS B1I/B2I/B3I/B1C/B2a/B2b(PPP), GPS L1/L2/L5, GLONASS L1/L2/L3, Galileo E1/E5a/E5b/E6(PPP), and QZSS L1/L2/L5.

Tilt Measurement

T30 has the IMU module. Fast initialization and up to 60° inclination.

Combined Antenna

The new four in one antenna integrates GNSS, WIFI, Bluetooth and 4G, with smaller volume and better signal.

PPK Processing Supported

PPK processing is supported when there is no stable RTK data link available.

Extended Battery Life

The receiver supports two detachable batteries that allow hot-swapping without power interruption. This enables quick battery replacement, significantly extending operational endurance.

IP68 Design

Industrial design, solid magnesium alloy shell, in line with IP68 design requirements, safe and reliable.

4G Modem

T10Pro has an internal 4G Modem that operates with more cellular network signals. A fast internet connection is guaranteed.

Linux Intelligent System

ARM Cortex-A7 + Linux, the intelligent system platform, brings efficient computing and unlimited expansion of product functions to users.

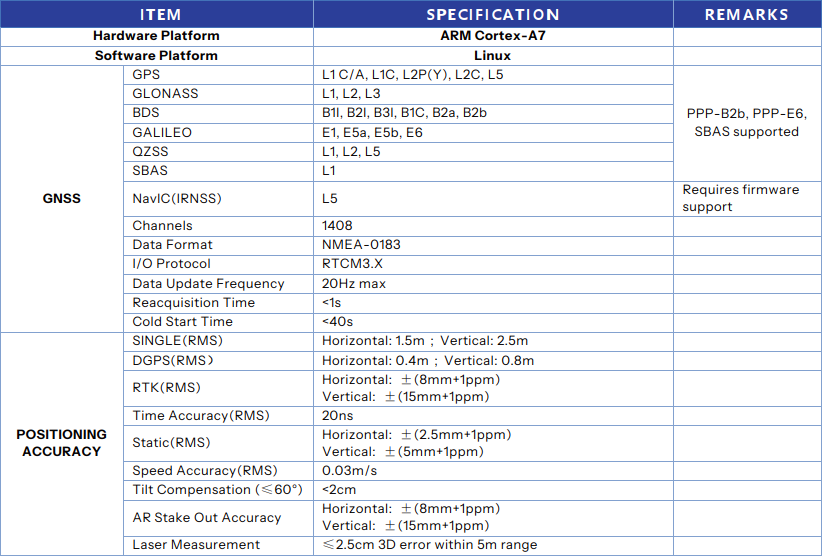

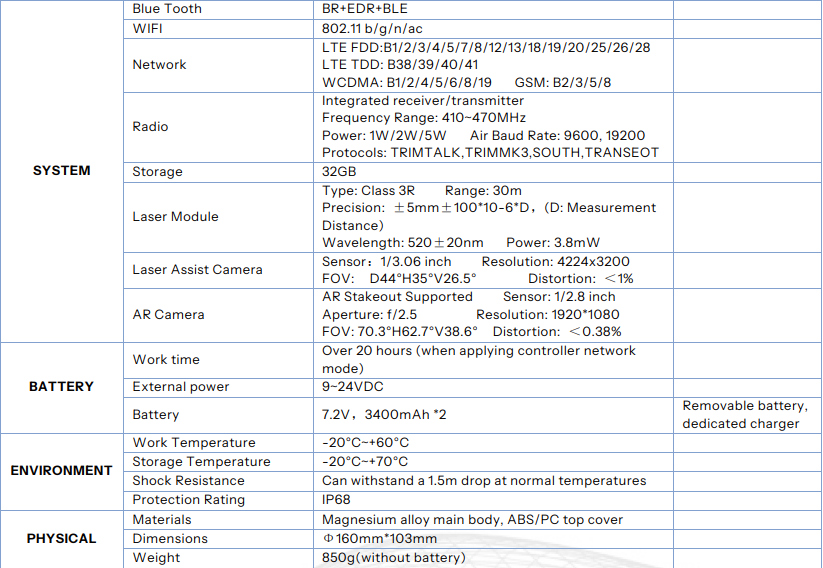

Technical Parameters - T40

T40 Unbox and Test Videos

T40 has similar functions with T30, and T40 supports detachable battery.

Unbox & Test Videos for T40 GNSS Receiver

4 Videos

Package And Sets

T40 (RTK rover set)

Packing List:

1 unit of T40  GNSS Receiver;

1 unit of T40 controller;

1 unit of  controller bracket;

1 unit of  UHF antenna;

1 unit of  charger and USB-C cable;

T40 PRO (RTK rover set)

Packing List:

1 unit of T40 PRO  GNSS Receiver;

1 unit of T40 PRO controller;

1 unit of  controller bracket;

1 unit of  UHF antenna;

1 unit of  charger and USB-C cable;
