TokNAV – High Performance GNSS Receiver – T30 Series

US$3,000.00 – US$3,850.00 Excl. GST/VAT

T30 series GNSS receiver is designed for long battery life and high precision. It includes an advanced positioning module supporting full-system and multi-frequency satellite signal tracking. Equipped with 4G universal connectivity, Bluetooth, WiFi, a 5W data radio, and a large-capacity battery, it can operate continuously for up to two days on a single charge. The device integrates a high-precision inertial navigation system combined with AR and laser technology for AR stakeout, laser measurement (T30) and Image Survey (T30 Pro), and augmented reality plotting, making surveying tasks more efficient and convenient.

Delivery Terms:

DDP, Australia;

DAP, Global shipping except Australia

Warranty:

OEM Warranty, 2 year;

Lead Time:

2 weeks plus transport.

Key Features Of T30 Series GNSS Receiver

TokNAV T30 GNSS receiver can be set up as both rover and base station with up to 5w radio. With its large volume battery on board, it can operate up to 48 hours with single charge. And it also supports AR stakeout, Image Survey (T30 Pro) and laser measurement (T30).

If you only need a rover function GNSS receiver without AR, image or laser survey, please consider T5 series RTK Rover;

If you only need a basic base station and rover function GNSS receiver, please consider T10 Pro series GNSS Receiver;

If LCD touch screen function is required on site, please upgrade to T20 Pro;

If detachable battery is required, please upgrade to T40 series;

✓ AR Real-Time Stakeout
✓ Enhanced with Green Laser
✓ Three days of operation on a single charge
✓ Precise navigation with 3cm accuracy Up to 10 meters.
✓ Integrated 4G and 5W radio enable

✓ AR Real-Time Stakeout
✓ Dual-Camera photogrammetry
✓ Three days of operation on a single charge.
✓ Just 2 seconds to compute directly on the device.
✓ Superior photo and point cloud quality for detailed measurements.

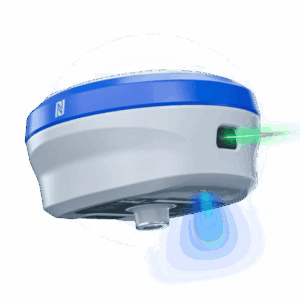

Laser Measurement (T30)

Equipped with a high-precision millimeter-level laser ranging module, combined with high-precision inertial navigation for accurate laser targeting in complex environments.

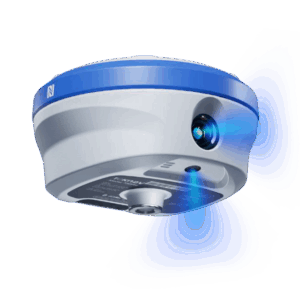

Image Surveying (T30 Pro)

Equipped with a 1/2.6-inch large base high-definition wide-angle camera, it integrates high-precision inertial navigation algorithms and works with high-performance Android handheld devices for high-precision image measurement.

AR Real-Time Stakeout

Utilizes a professional ultra-wide-angle camera to provide high-definition real-time plotting functionality, making layout tasks more accurate and convenient.

PPP Supported

Precise Point Positioning (PPP): Leverages precise satellite orbit/clock products for single-receiver positioning, which allows to acquire high precision position anywhere on earth without any subscription.

Full System GNSS Reception

The receiver integrates a high-precision positioning module, utilizing 1408 channels to support a comprehensive range of signals including BDS B1I/B2I/B3I/B1C/B2a/B2b(PPP), GPS L1/L2/L5, GLONASS L1/L2/L3, Galileo E1/E5a/E5b/E6(PPP), and QZSS L1/L2/L5.

Tilt Measurement

T30 has the IMU module. Fast initialization and up to 60° inclination.

Combined Antenna

The new four in one antenna integrates GNSS, WIFI, Bluetooth and 4G, with smaller volume and better signal.

PPK Processing Supported

PPK processing is supported when there is no stable RTK data link available.

Long Endurance

Built-in high-capacity lithium battery ensures continuous working time of more than 48 hours under normal operation.

IP68 Design

Industrial design, solid magnesium alloy shell, in line with IP68 design requirements, safe and reliable.

4G Modem

T10Pro has an internal 4G Modem that operates with more cellular network signals. A fast internet connection is guaranteed.

Linux Intelligent System

ARM Cortex-A7 + Linux, the intelligent system platform, brings efficient computing and unlimited expansion of product functions to users.

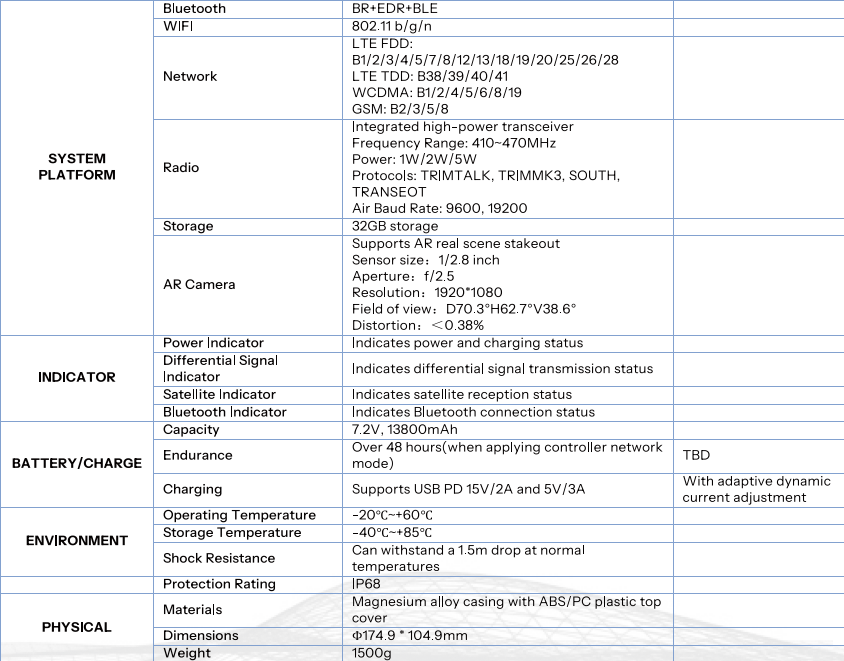

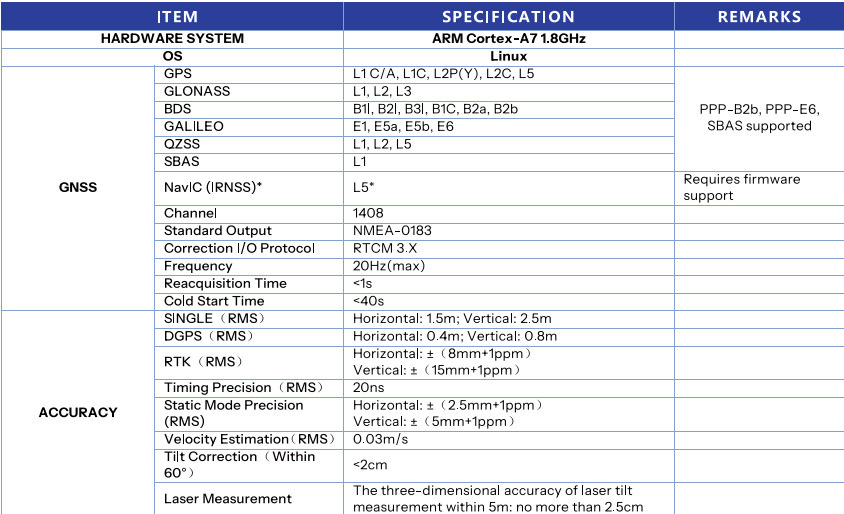

Technical Parameters - T30
