TokNAV – Engineering Level T20 Pro GNSS Rover/Base – Global Shipping

US$2,850.00 Excl. GST/VAT

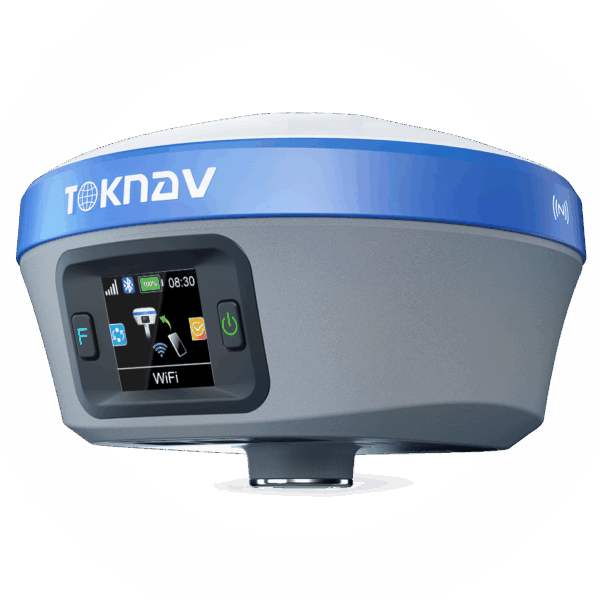

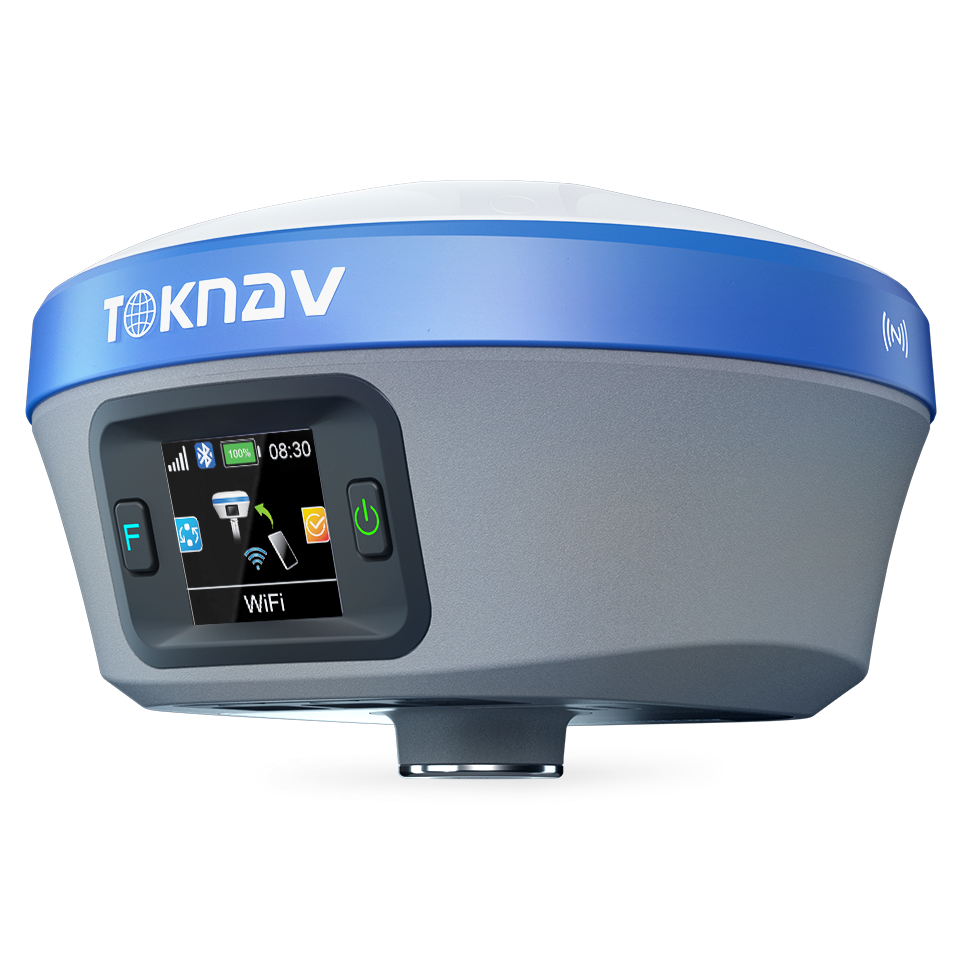

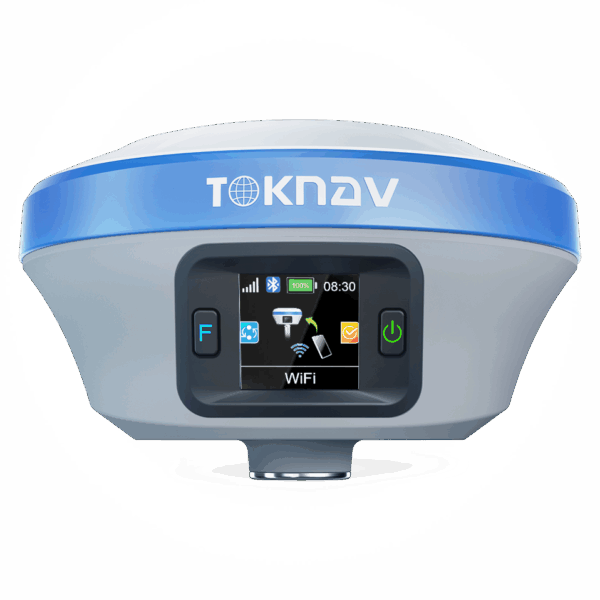

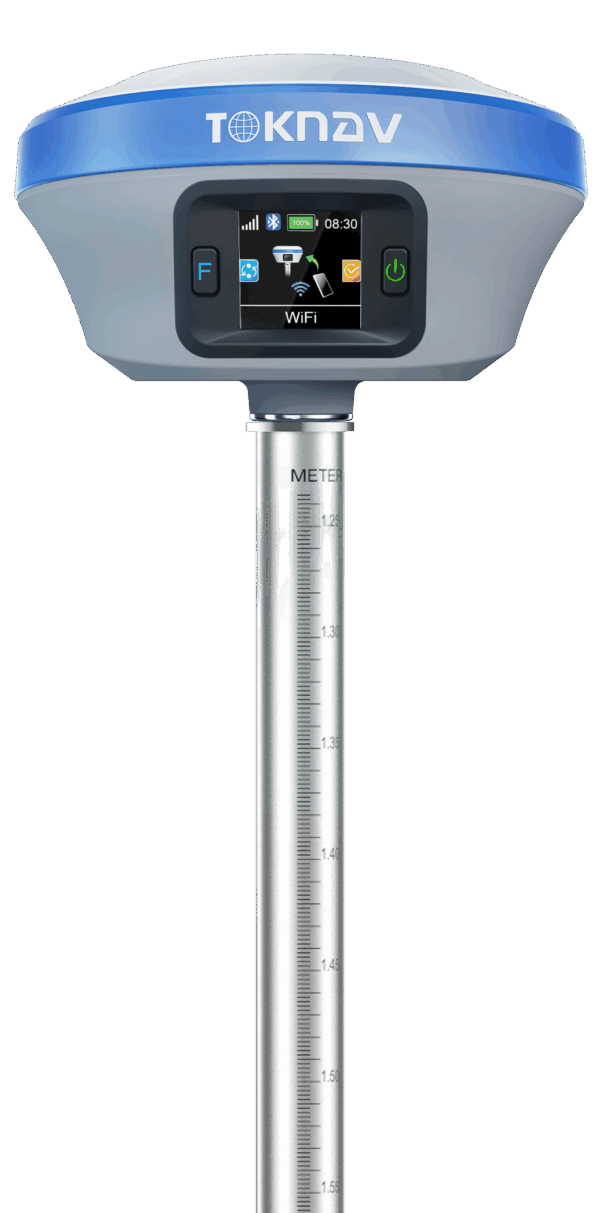

T20Pro is a high-performance GNSS receiver that provides an easy-to-use solution for users. TOKNAV T20Pro supports the original tilt compensating GNSS solution. Multi constellation and frequency tracking always guarantee a fixed solution for your job. LCD display screen can make your operation faster and easier. T20Pro built-in 5W radio allows users to have a longer working distance, up to 16km in open areas, The durable IP68 design makes it possible to work in extreme environments.

Delivery Terms:

DDP, Australia;

DAP, Global shipping except Australia

Warranty:

OEM Warranty, 2 year;

Lead Time:

2 weeks plus transport.

Key Features Of T20 Pro GNSS Receiver

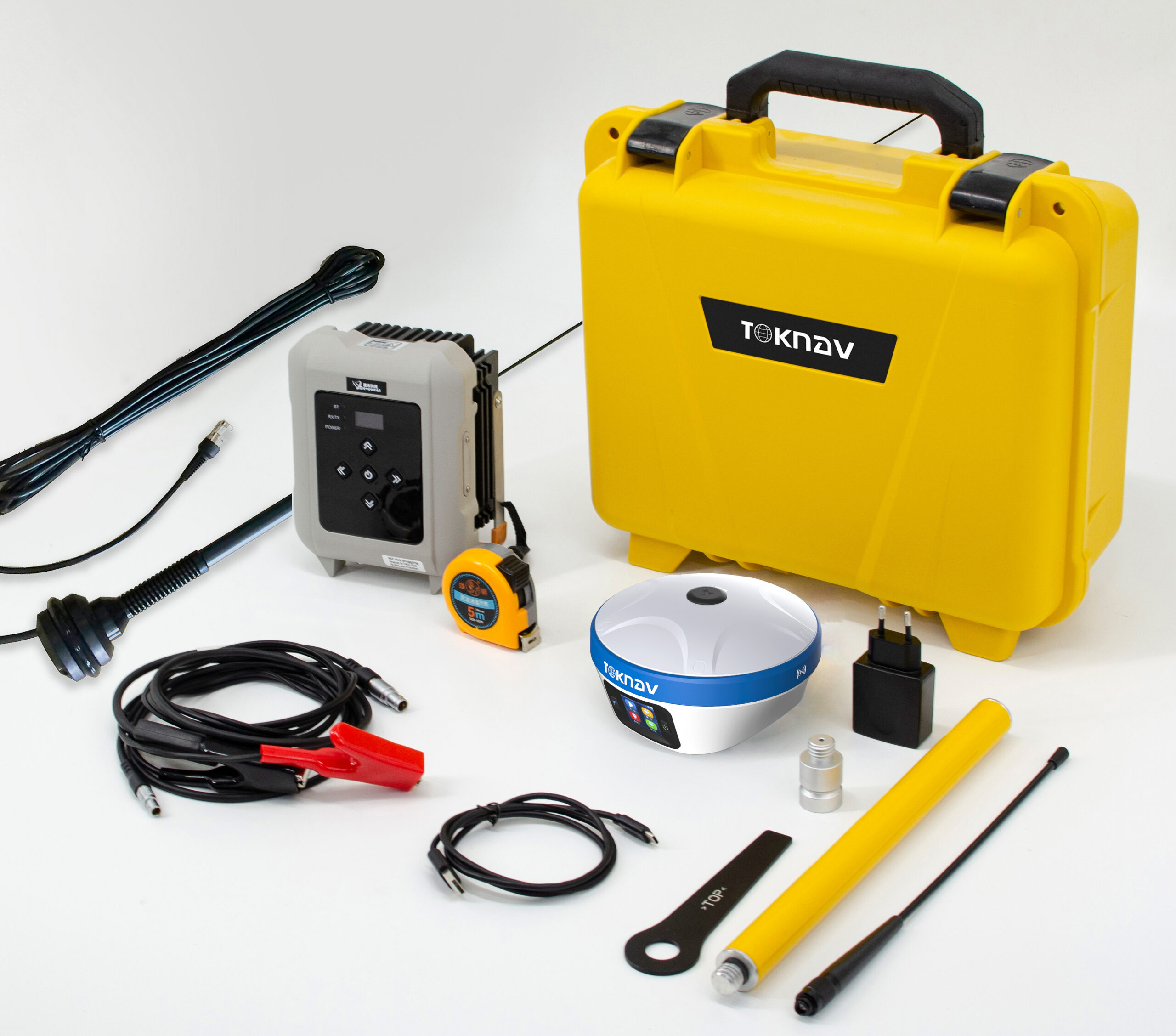

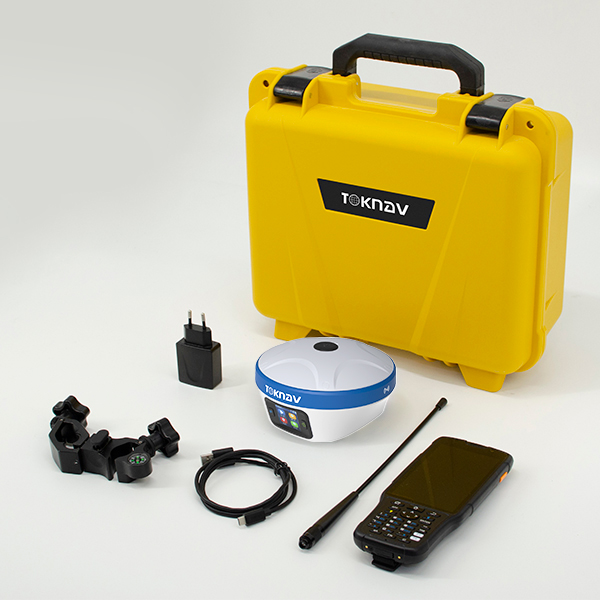

TokNAV T20 Pro GNSS receiver can be set up as both rover and base station with up to 5w radio.

If you only need a rover function GNSS receiver, please consider T5 series RTK Rover;

If you only need a rover & base station function GNSS receiver with less powerful radio and without LCD touch screen, please consider T10 Pro GNSS Reciever;

If laser, AR stakeout, or image survey are required for site application, please upgrade to T30 or T40 series;

PPP Supported

Precise Point Positioning (PPP): Leverages precise satellite orbit/clock products for single-receiver positioning, which allows to acquire high precision position anywhere on earth without any subscription.

Multi Constellation

With its 1408 channels, T20Pro provides an excellent on board real time navigation solution with high accuracy. All GNSS signals (GPS, GLONASS, BDS, GALILEO, QZSS, SBAS and IRNSS) are included.

Tilt Measurement

T20Pro has the IMU module. Fast initialization and up to 60° inclination.

Combined Antenna

The new four in one antenna integrates GNSS, WIFI, Bluetooth and 4G, with smaller volume and better signal.

PPK Processing Supported

PPK processing is supported when there is no stable RTK data link available.

Long Endurance

Built-in high-capacity lithium battery ensures continuous working time of more than 16 hours under normal operation.

IP68 Design

Industrial design, solid magnesium alloy shell, in line with IP68 design requirements, safe and reliable.

Linux Intelligent System

ARM Cortex-A7 + Linux, the intelligent system platform, brings efficient computing and unlimited expansion of product functions to users.

4G Modem

T10Pro has an internal 4G Modem that operates with more cellular network signals. A fast internet connection is guaranteed.

Adjustable Power

T20Pro has an internal radio of adjustable power of 1W/2W/ 5W, and works as base station at 5W power. The transmission distance can reach to maximum 16km when working in the open areas.

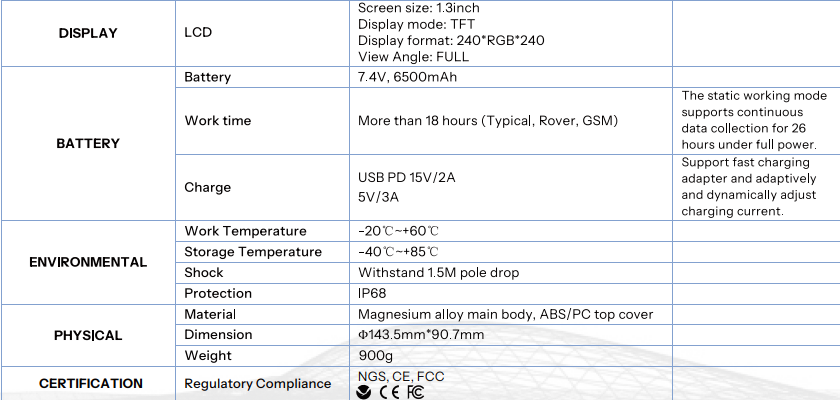

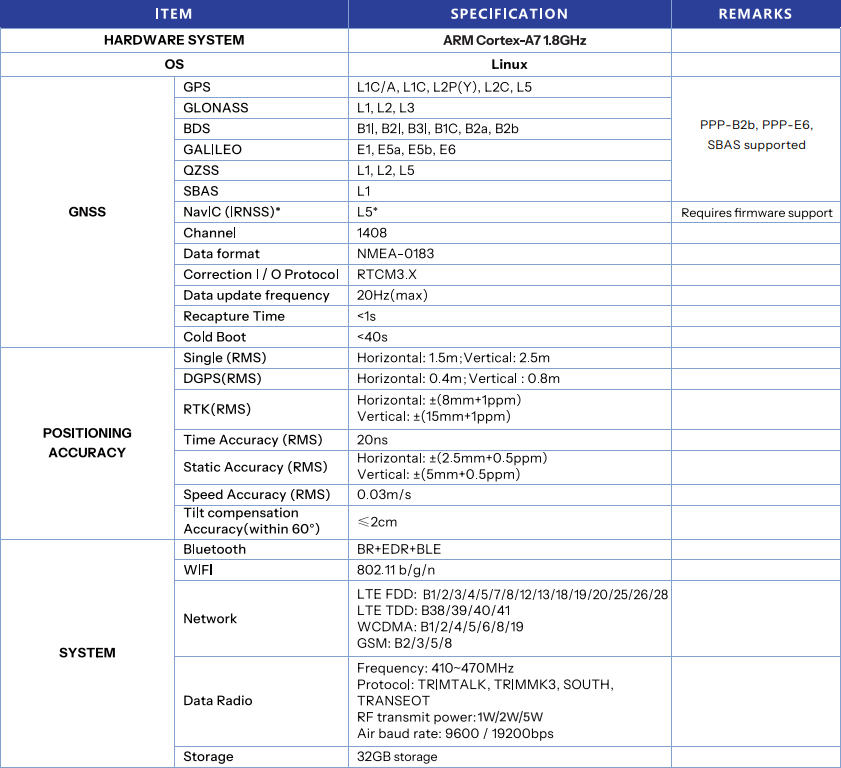

Technical Parameters

Downloads & Tutorials

Brochure Download

T20 Pro GNSS Receiver Brochure

TSurvey 2.0 Survey Software Tutorial

T20Pro Unbox and Test Videos

Unbox & Test Videos for T20 Pro GNSS Receiver

7 Videos
