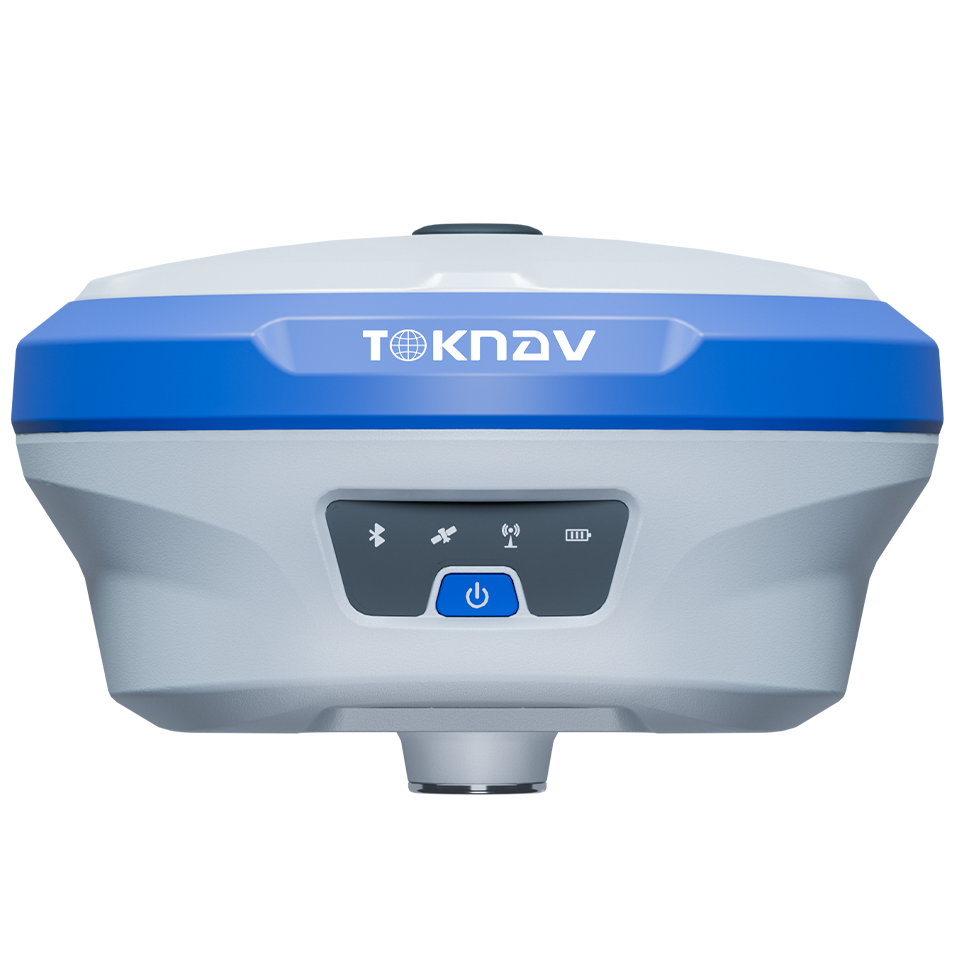

TokNAV – Tbase Base Station Specific GNSS Receiver – Global Shipping
US$2,370.00 Excl. GST/VAT
The tBase is designed and developed specifically for professional base station applications. It features a high-precision positioning module, supporting full-system, multi-frequency satellite signal tracking. Equipped with 4G, Bluetooth, WiFi, a 5W radio, and a large-capacity battery, it meets the demands for concurrent data links at base stations and alleviates the endurance concerns typical of built-in radio work modes, making measurements more convenient and efficient.
Delivery Terms:
DDP, Australia;
DAP, Global shipping except Australia
Warranty:
OEM Warranty, 2 year;
Lead Time:
2 weeks plus transport.
Key Features Of Tbase Base Station GNSS Receiver
Linux Intelligent System
ARM Cortex-A7 + Linux, the intelligent system platform, brings efficient computing and unlimited expansion of product functions to users.
Full System GNSS Reception
The receiver integrates a high-precision positioning module, utilizing 1408 channels to support a comprehensive range of signals including BDS B1I/B2I/B3I/B1C/B2a/B2b(PPP), GPS L1/L2/L5, GLONASS L1/L2/L3, Galileo E1/E5a/E5b/E6(PPP), and QZSS L1/L2/L5.
Remote VPN Management
With an integrated VPN, the device allows remote configuration of various functions without the need to return to the base station setup point, facilitating flexible adjustment of work requirements in complex environments.
IP68 Design
Industrial design, solid magnesium alloy shell, in line with IP68 design requirements, safe and reliable.
Concurrent Data Links
The integrated 4G and 5W radio enables simultaneous network and radio differential transmission, streamlining operations by eliminating the need to choose between radio and network.
Extended Range and Battery Life
Features a built-in radio capable of 5W transmission and a 13800mAh battery, ensuring operational distances over 16km and continuous operation up to 12 hours.

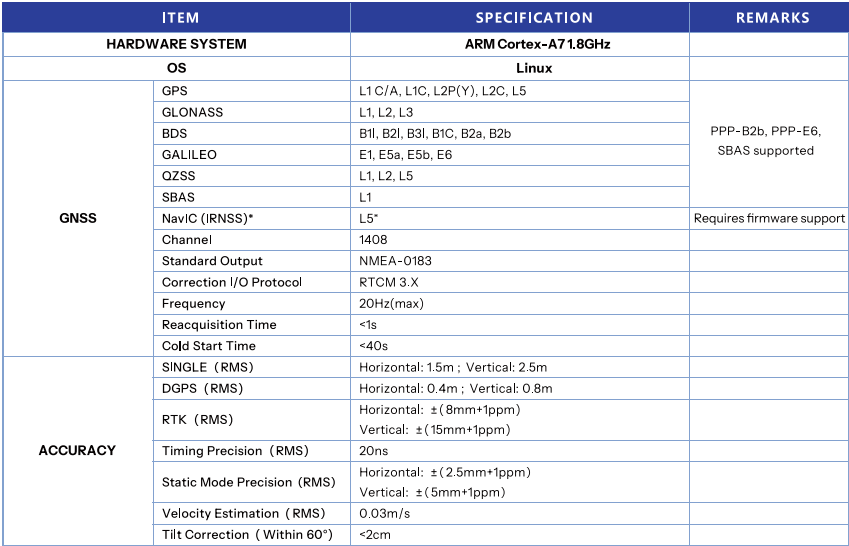

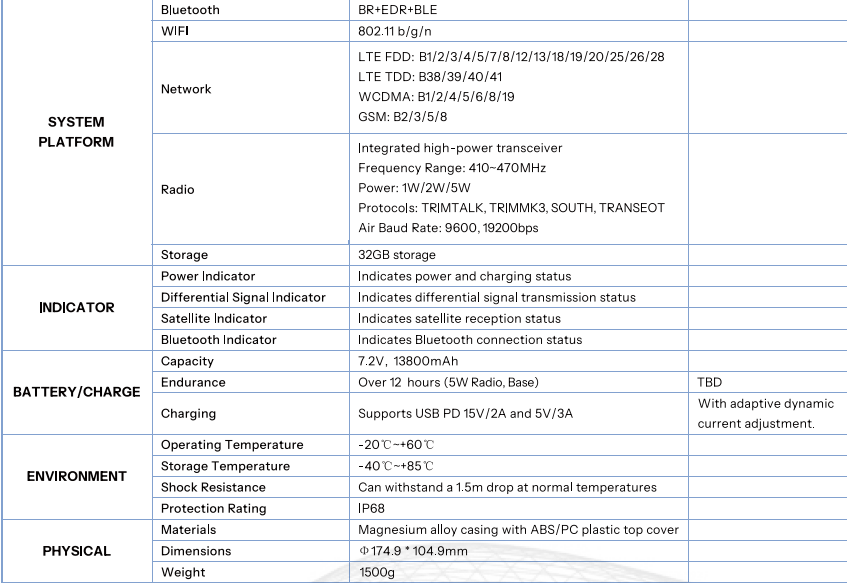

Technical Parameters - Tbase
Downloads & Tutorials
TSurvey 2.0 Survey Software Tutorial
Tbase Unbox and Test Videos
Unbox & Test Videos for Tbase GNSS Receiver
2:04
2:04
Package And Sets

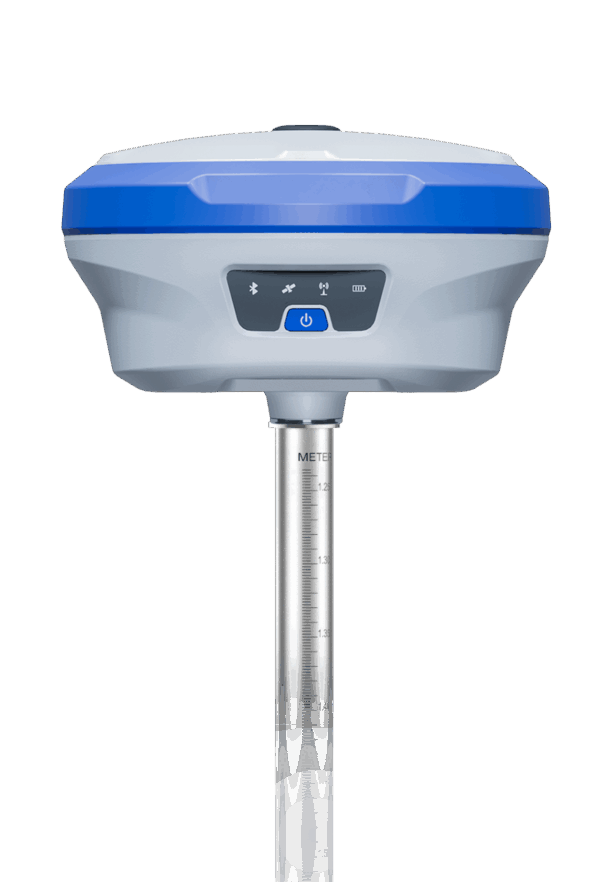

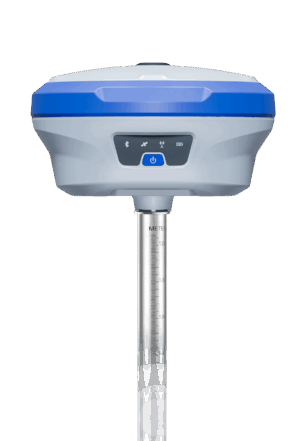

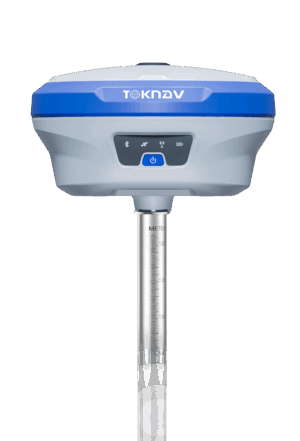

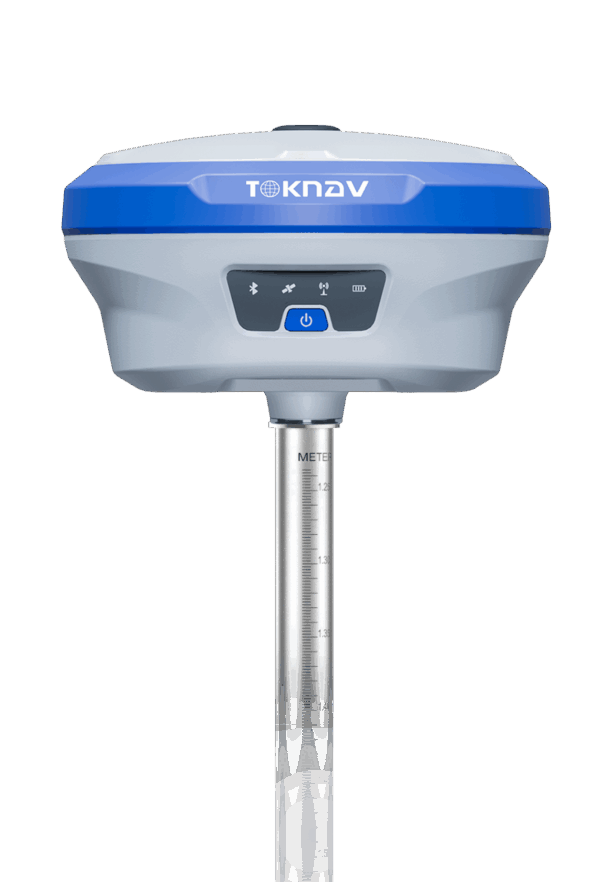

Tbase (RTK Base set)
Packing List:
1 unit of Tbase GNSS Receiver;
1 unit of tape measure;
1 unit of extension rod & adapter;
1 unit of UHF antenna;
1 unit of charger and USB-C cable;
