Revolutionize Your Scanning with Mobile Lidar & Portable 3D Laser Scanner

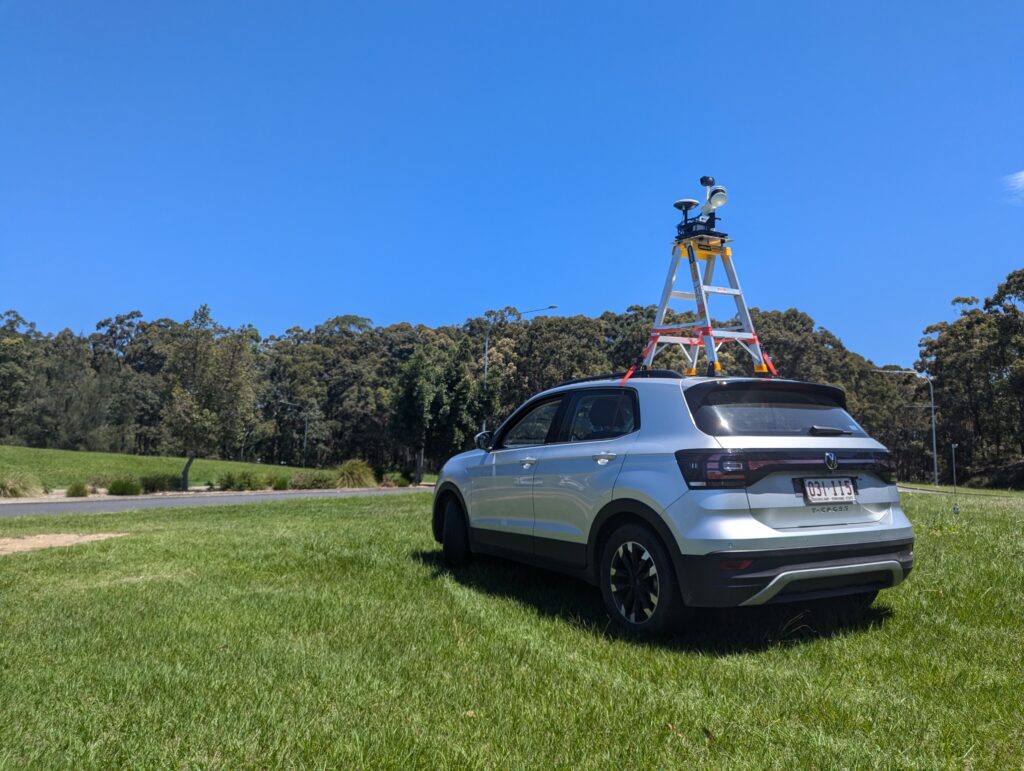

LiMobile Standard is one of the products in the GVI mobile LiDAR Scanner product line, which is designed to be mounted on SUVs at 45 degrees tilted angle. It can be used to acquire high-quality ground and terrain data on both sides of the road as it is equipped with a high-resolution camera. The integrated vehicle mounting system is highly adaptive to various SUV models. A variety of connection ports are reserved for optional modules, such as panoramic cameras, encoders, horizontal lasers, and many others in order to provide a complete mobile surveying solution.

Mobile LiDAR Scanners for Infrastructure Projects

A mobile LiDAR scanner provides high accuracy digital mapping for large infrastructure projects, while limiting traffic disruption and increasing safety. Compared to conventional surveying, it saves on time and costs. Its high speed allows it to survey large areas quickly and efficiently, avoiding delays and traffic snarls. It also requires less manpower than traditional surveying methods, reducing the potential for human error and ensuring the highest level of accuracy.

A Mobile LiDAR system incorporates high-resolution LiDAR sensors, spherical vision cameras, and Global Navigation Satellite Systems mounted on a moving platform. It is ideal for mapping linear infrastructure, and uses non-invasive survey methods to create high-resolution 3D point clouds that are usable for engineering design, feature extraction, and Digital Terrain Modelling. A Mobile LiDAR system can also be used to assess the condition of existing infrastructure.

The LiMobile mobile laser scanning system provides a highly robust vehicle mounted scanning solution. The scanner incorporates a Hesai 32 Channel laser scanners with a 360-degree field of view. It also has a GPS unit and high-accuracy IMU. It can be operated from a moving vehicle and can collect more than 50 points per square meter. It can travel at up to 100 km/h. LiMobile also fits your needs and be able to handle rugged environments. This technology also has built-in solid state data storage for long-term usage. Its battery power is enough for 6 hours of continuous scanning. It also features a built-in WIFI modem to allow real-time QA monitoring.



Key Features of LiMobile Mobile LiDAR Scanner

limobile - mobile lidar scanner - LiMobile-Greenvalley international

Modularization

A range of optional modules is available to fit customers’ specific needs in various of industries.

Integration

The all-new integrated vehicle mounting system, with pullout design. Highly adaptable to various SUV models.

Sensors

The ability to scan and acquire high-precision 3D point cloud data from vertical (-90° to 90°) and horizontal (360°) within the scanning range.

Lightweight Design

Robust aluminum housing and small PCB boards are adopted to reduce the interior space significantly to compact the size and weight of the system.

Power Supply

Powered by a battery compartment containing a maximum of six easy-carry batteries, it lasts all day without needing a recharge.

Control Method

The real-time running condition and the state of the system can be monitored through wireless and wired control.

LiMobile - Mobile LiDAR Scanner - Specifications

System Specifications
Dimensions [1] (mm)                                     265*270*230 mm                  Battery5700mAh*6
Weight [1] (Excl. Battery)                                                                          4.7 kg           Battery Life~6 h / Battery
Storage Capacity                                                          512 GB SSD                                     Ports                HDMI, USB, Network
System Control and Data DisplayWireless Mode – Smartphone/Tablet Connect via WIFI, Simultaneous Control and Display
Wired Mode – Wire Connection between System and Tablet, Control and Data Transmission
Sensor SpecificationsGNSS Specifications
Laser SensorXT32Satellite TrackingGPS: L1 C/A, L1C, L2C, L2P, L5
GLONASS: L1 C/A, L2C, L2P, L3,L5
BeiDou: B1,B2
Range Accuracy±3 cm
Verticle FOV ’-16°~ 15°
Horizontal FOV 0°~360°
Maximum Range 120 mPositioning Accuracy 1 cm + 1 ppm
Camera SpecificationData Output
CameraPanoramic CameraRelative Accuracy ≤3cm[2]
Resolution8.9 MP Absolute Accuracy ≤15cm[2]
Frame Rate6Point Cloud Data Formatlas, laz, ply, LiData



Demo Video

Applications of Mobile LiDAR Scanners

road scanning mobile lidar scanner / mobile laser scanner

Mobile LIDAR scanners have a variety of applications, from urban modeling to infrastructure analysis. Listed below are some of the most common uses of mobile LIDAR. If you need to use this technology for mapping projects, there are a number of advantages and disadvantages to consider. Before purchasing a mobile LIDAR, make sure to review the benefits and limitations of the technology.

For example, the mobile lidar scanner can be used to create 3D point clouds while a vehicle is moving. This technology uses an inertial measurement unit and global navigation satellite system to generate a point cloud from range data. Sensor properties such as wavelength, scan frequency, and point measurement rate affect the point cloud characteristics. Several papers have described different sensor layouts and measurements.

Another application for mobile lidar scanners is in 3D mapping along corridors. Unlike other mapping techniques, mobile Lidar systems are capable of capturing high-resolution 3D topographic data at normal speeds. This means that mobile Lidar systems are a great option for surveying various corridors and environments. They provide high-resolution 3D models that far surpass the accuracy of traditional methods.

Mobile LiDAR scanners have numerous applications in road construction. In addition to providing quality control during the construction process, these systems can also produce high-accuracy as-built records. They can be used to compare the data obtained by mobile LiDAR to the original CAD drawings.
