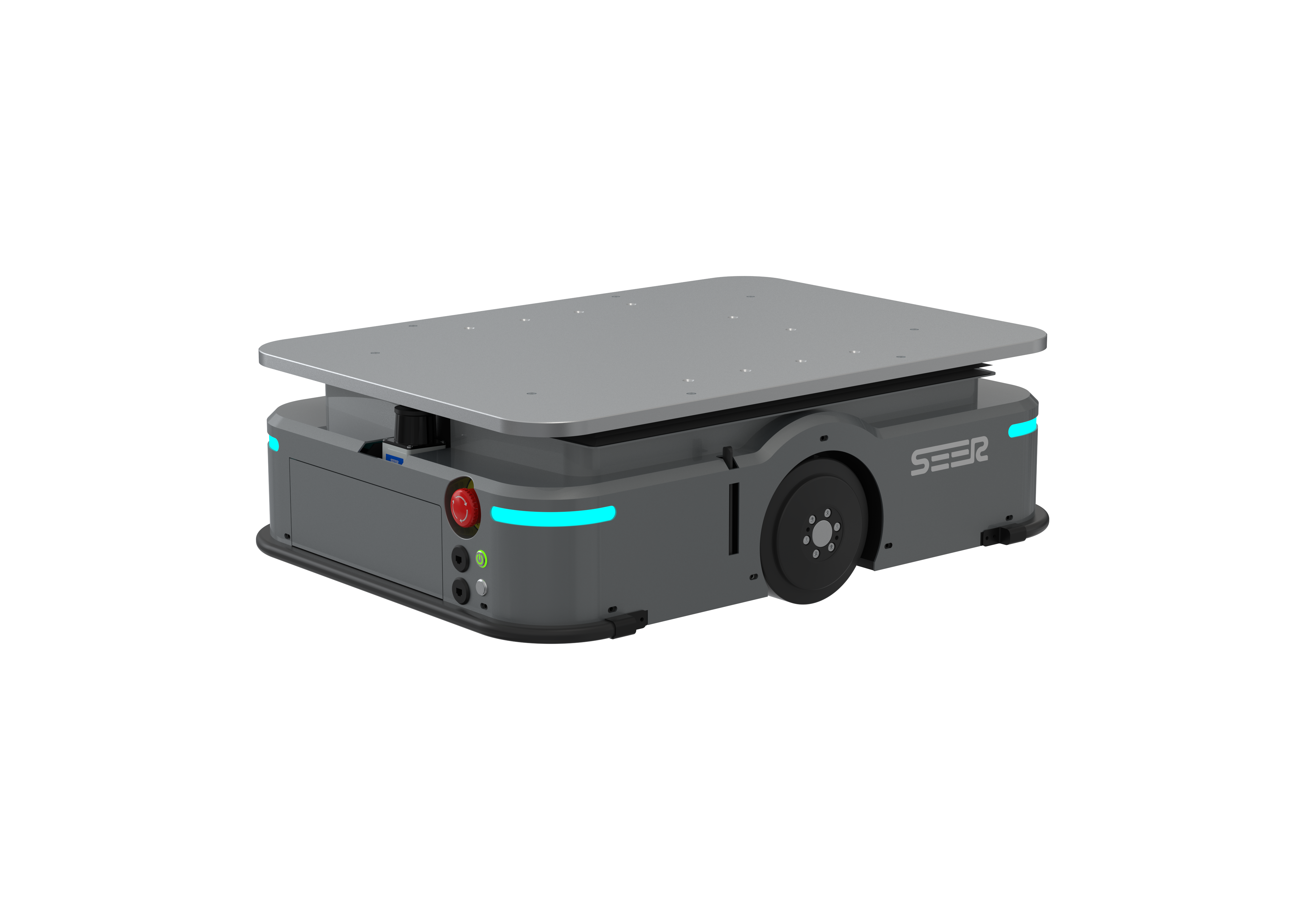

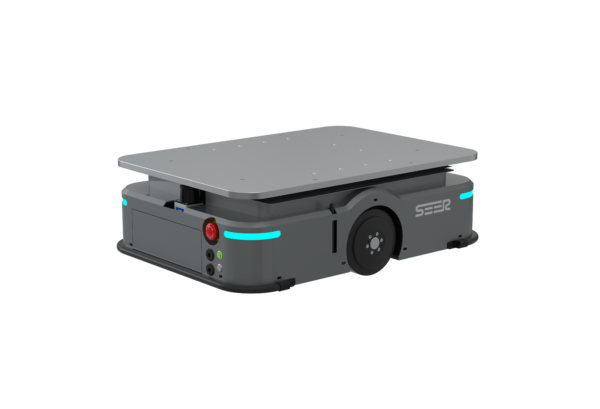

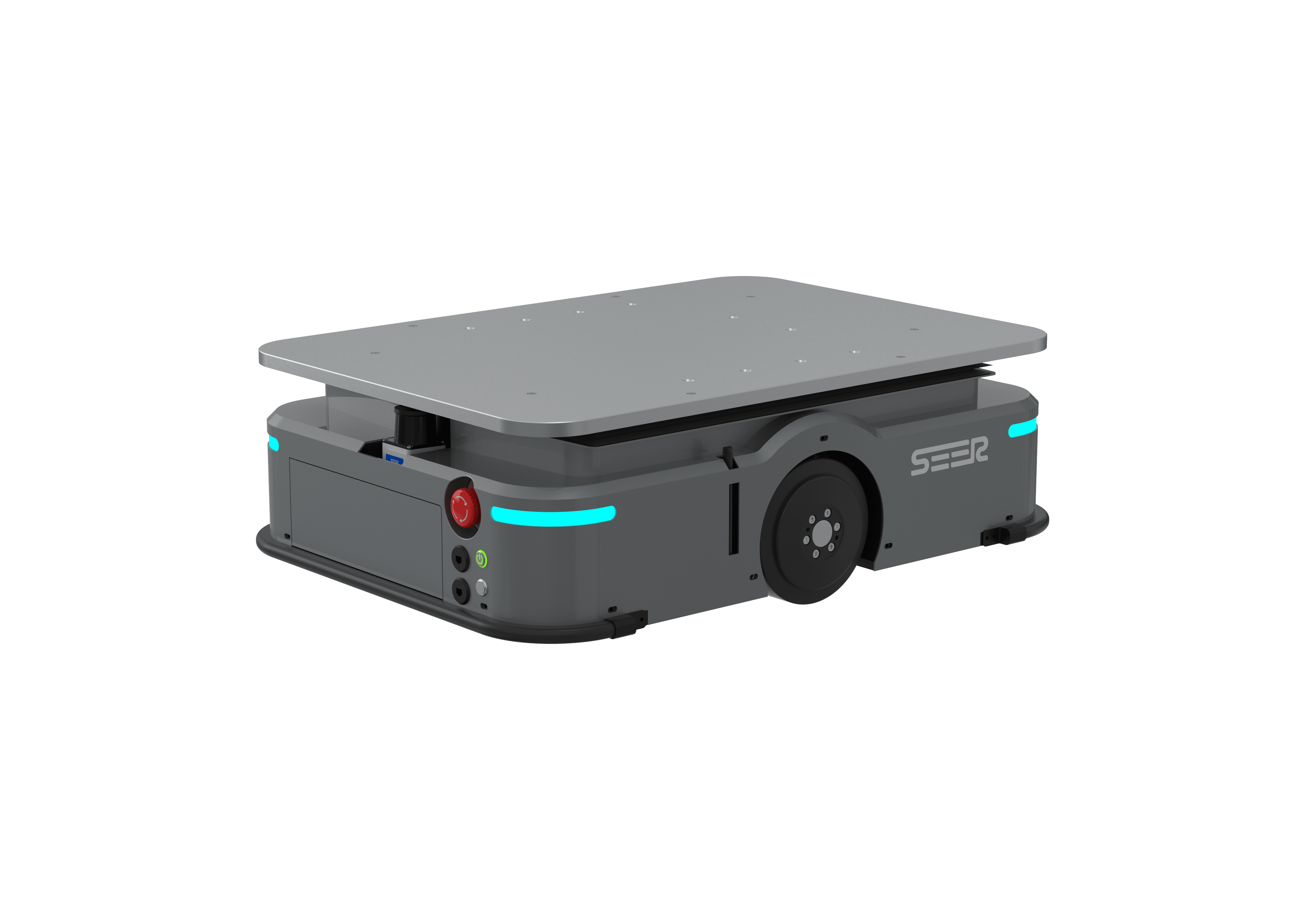

Latent Jacking Transfer Robot – AMB 300JZ

Request For Quote

AMB Series latent jacking robots / AGV are with following features:

  • Automated navigation;
  • Small;
  • Flexible;
  • Latent Lifting/Jacking

Smaller and More Flexible

The smaller size allows for a lower chassis height with the integrated climbing mechanism, lower environmental requirements, more coverage scenarios, and less site restrictions.

More Secure and Efficient

Dual lasers and bumper strip sensors at the front and back for 360° protection; 10 minutes of charging for 1 hour of running.

Powerful Material Shelf Identification

A variety of goods racks can be identified and it can moveunder the racks and jack the goods, it can also identify material racks in various industries.

More Powerful Algorithms

Shelf identification and correction, high dynamic environment position and navigation, slip detection and correction, QR code secondary precise positioning, hybrid navigation, automatic following, and using fifth-order Bezier curve.

New Industrial Design

With SEER's new design PI language, present customers with a powerful and high-tech product of metal texture.

General Specifications

Technical Parameters

Navigation method: Laser SLAM
Drive mode: Two-wheel differential
Shell color:  Cool Gray
L*W*H:  792mm*580mm*250mm
Rotation diameter:  910mm
Load capacity:  300kg
Chassis ground clearance:  25mm
Jacking platform dimensions:  760mm*545mm
Maximum jacking height: 60±2mm
Jacking time:  5±0. 5s
Laser scanning height:  FREE 188mm/SICK 193mm
Network Ethernet/Wi-Fi:  802.1 1 a/b/g/n/ac
Ambient temperature and humidity range:  TEMP: 0-50°C/RH: 10-90%,
no compression, no condensation
IP rating: IP20

Battery parameters

Battery specifications: 48V/20AH (Lithium Iron Phosphate)
Comprehensive battery life: 8h
Automatic charging parameters: 54.6V/15A
Charging time (10-80%): <1h
Charging method: Manual/Automatic
Battery cycle number: >1500 times

Performance parameters

Passability (slope/step/gap): <5%/5mm/30mm
Minimum passable width: 640mm
Navigation position accuracy: ±5mm
Navigation angle accuracy: ±0.5°
Navigation speed: <1.5m/s
Map area(single frame): <400000m 2

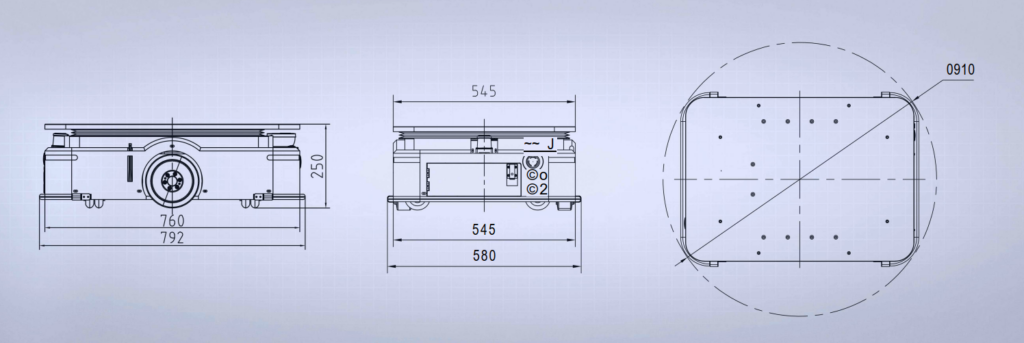

Dimension (mm)
