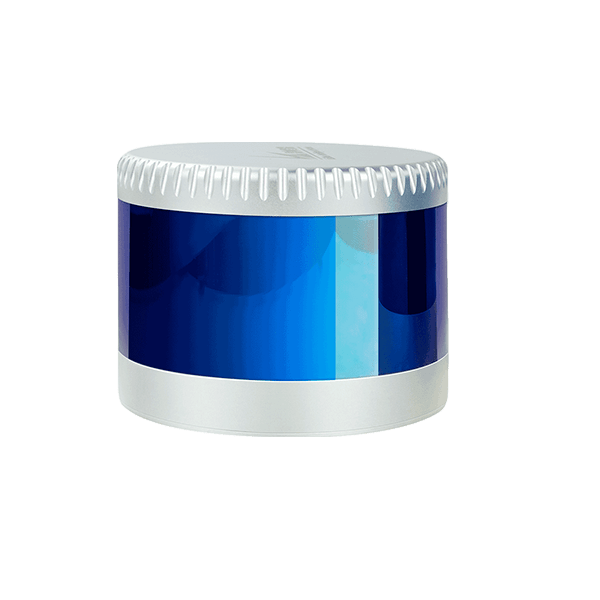

CX16 3D LiDAR Scanner – 150m – Global Shipping

US$2,187.00 Excl. GST/VAT

CX16 achieves 360 ° 3D high-speed scanning with 16-beam laser, measurement range up to 200 m, ±3cm accuracy, up to 1.33°vertical angle resolution, widely used in an autonomous vehicle, ADAS, smart transportation, service robots, logistics, surveying and mapping, security and so on.

Delivery Terms:

DAP, Global shipping

Parts included in the package:

1 unit of C16 3D LiDAR sensor and its accessories

Warranty:

OEM Warranty, 1 year;

Lead Time:

2 weeks plus transport.

Introduction

Leishen CX16 is a light weight, compact and high accuracy 3D LIDAR scanner. The device can generate 320,000 points per second and the vertical resolution is 2 degree. It also has 360 degree horizontal FoV with 150m detection range and ±3cm accuracy. CX16 has been widely used in autonomous vehicle, ADAS, smart transportation as well as 3D mapping applications such as logistics and service robots etc. With C16 you will be able to work under harsh condition such as strong vibration or shock of 500m/sec2 .The IP67 protection ensures that your product will not be damaged by dirt or dust which could cause a malfunctioning device .

Working Principle

The C16 mechanical high accuracy lidar scanner adopts the Time of Flight method. The 3D laser scanner starts timing (t1) when the laser pulses are sended out. And when the laser encounters the target object and the light returns to the sensor unit, the receiving end stops timing (t2).
Distance = Speed of Light*(t2 – t1)/2

C16 3D LIDAR SCANNER WORKING PRINCIPLE

Features



  • High point density, capable of generating approximately 320,000 3D point cloud coordinates per second
  • Wide field of view, with 360°horizontal FOV and 32°vertical FOV.
  • Compact size and lightweight

Specifications of CX16-150m 3D Lidar scanner:



    • Channels: 16
    • Measurement Technique: TOF
    • Wave Length: 905nm
    • Laser Classification: Class 1 Eye-safe/ IEC 60825-1:2007 & 2014
    • Measurement Range: 150m
    • Ranging Accuracy: ±3cm
    • Angle resolution:
    • Horizontal: 5Hz: 0.09º / 10Hz: 0.18º / 20Hz: 0.36º
    • Vertical:  2°
    • Data Points Generated: Max 320,000 points per second
    • Rotation Speed: 5~20 Hz
    • FOV – Horizontal: 360°
    • FOV – Vertical:   -15°~ 15°
    • IP: IP67
    • Dimensions (D*H): 102*78mm
    • Weight: 1000g
    • Communication Interface:  Ethernet、PPS
    • Operation Voltage: 10V~36VDC

Point Cloud DEMO of CX16



CX16 LIDAR SENSOR POINT CLOUD



Applications



Autonomous Robots:

CX16 3d lidar scanner robotics applications

V2x:

CX16 3D LIDAR SCANNER APPLICATION V2X

Support Documents Of CX16 3D:



Parts included in the package:



  • 1 unit of CX16
  • 1 unit of power and communication adapter
  • 1 unit of Ethernet cable
  • Screws for installation

cx16 package
