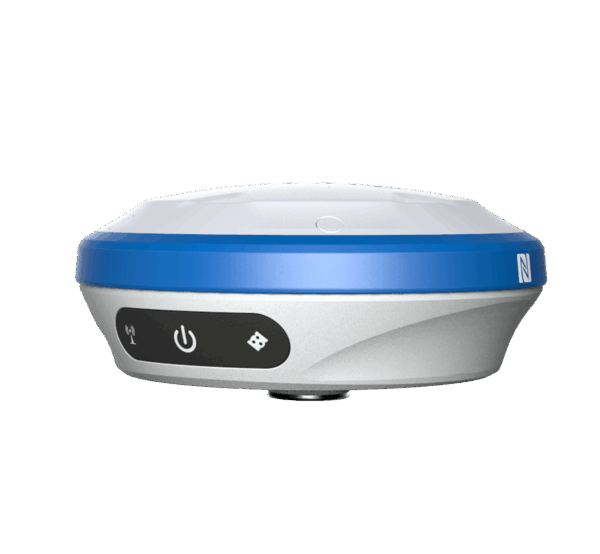

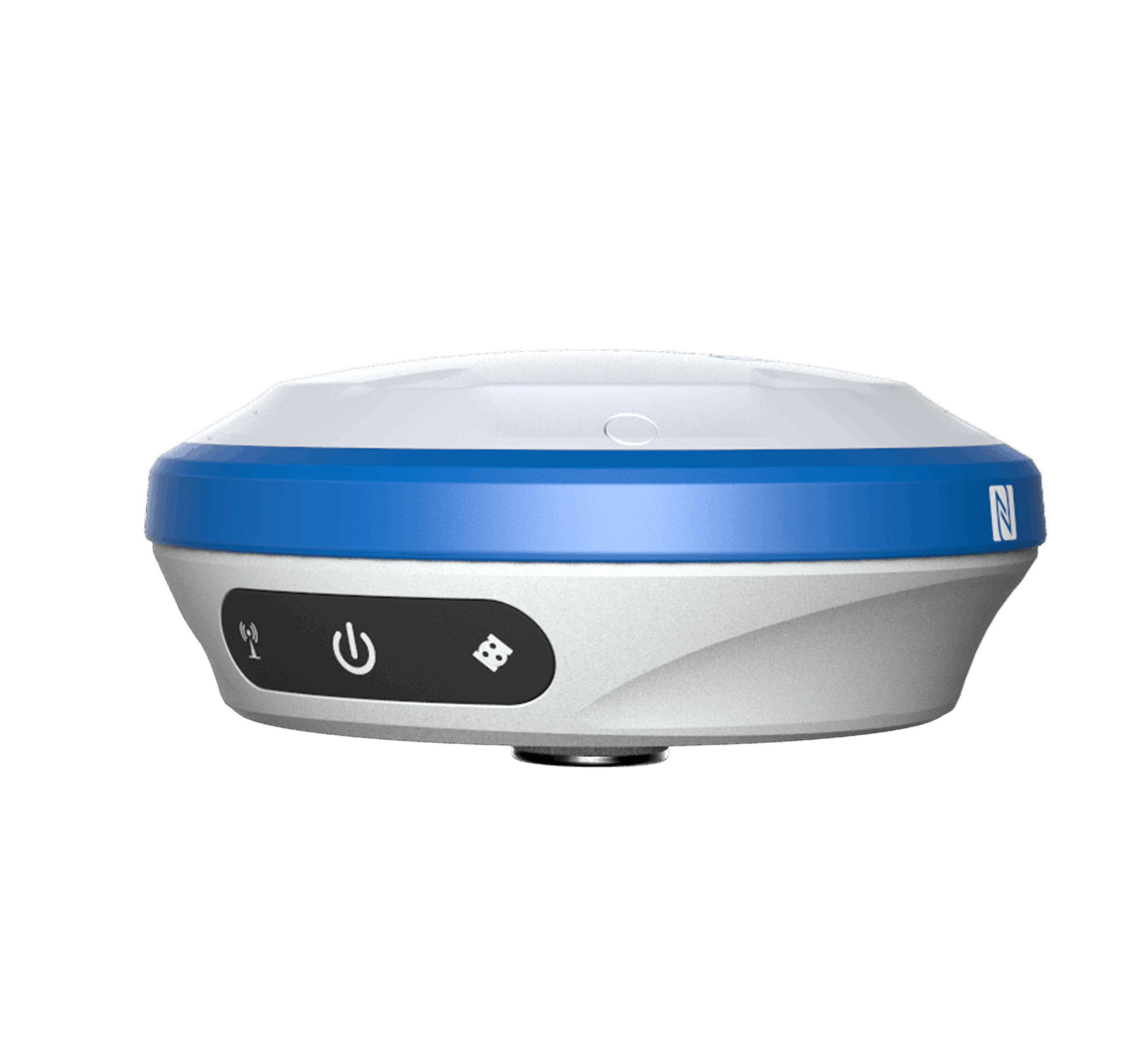

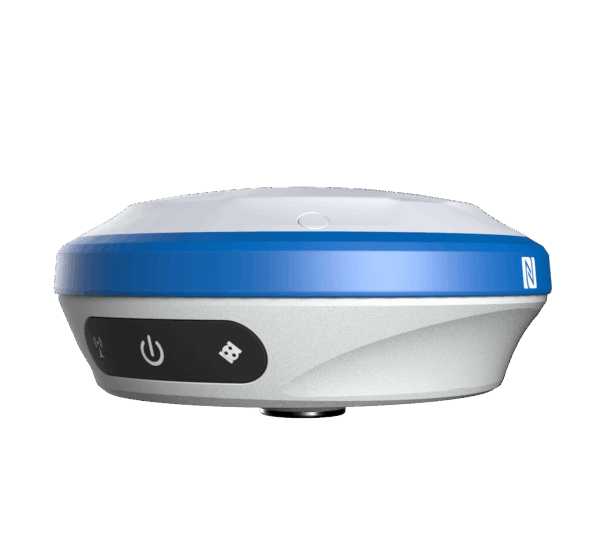

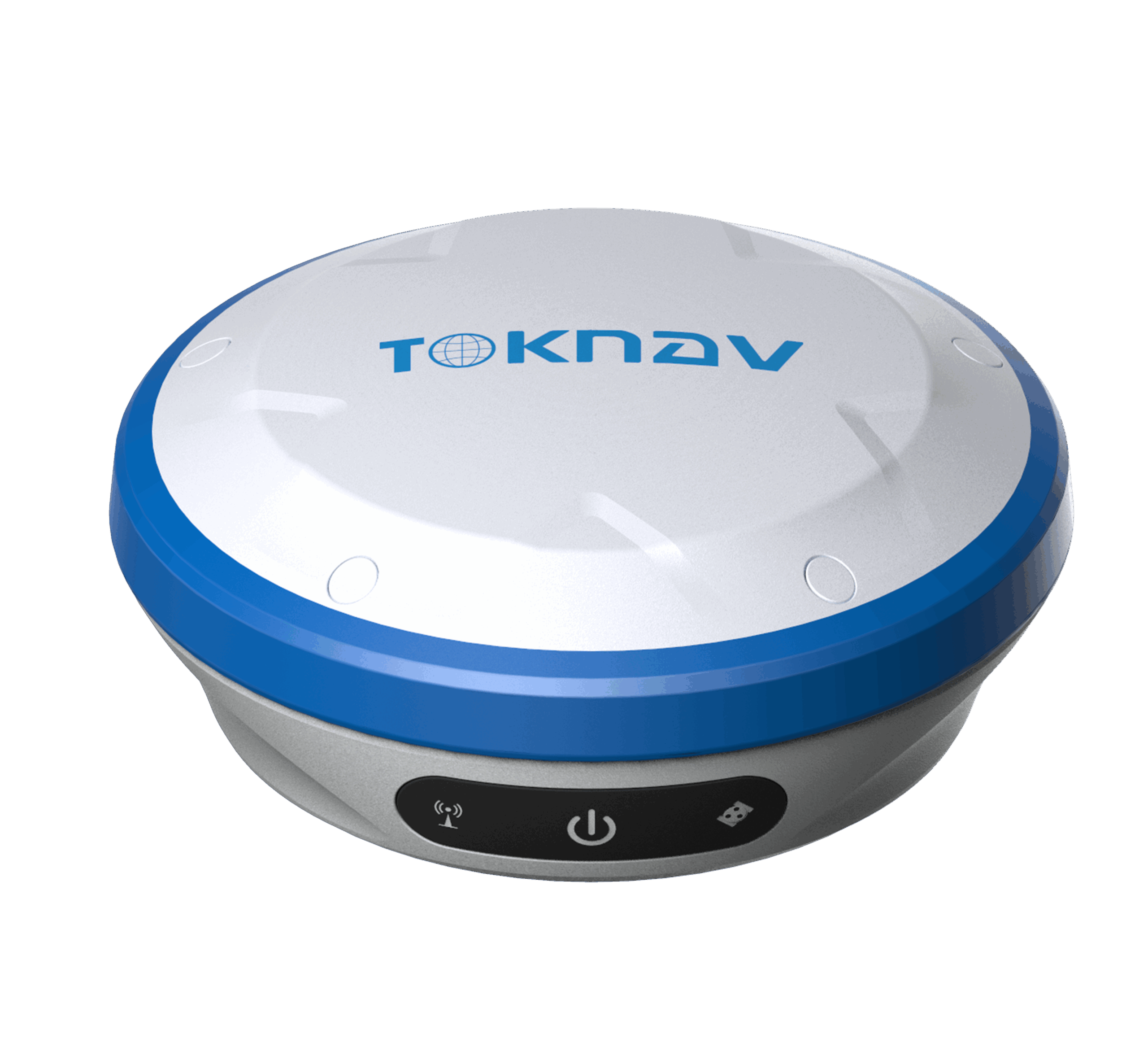

TokNAV – High Performance GNSS Receiver – T10 Pro

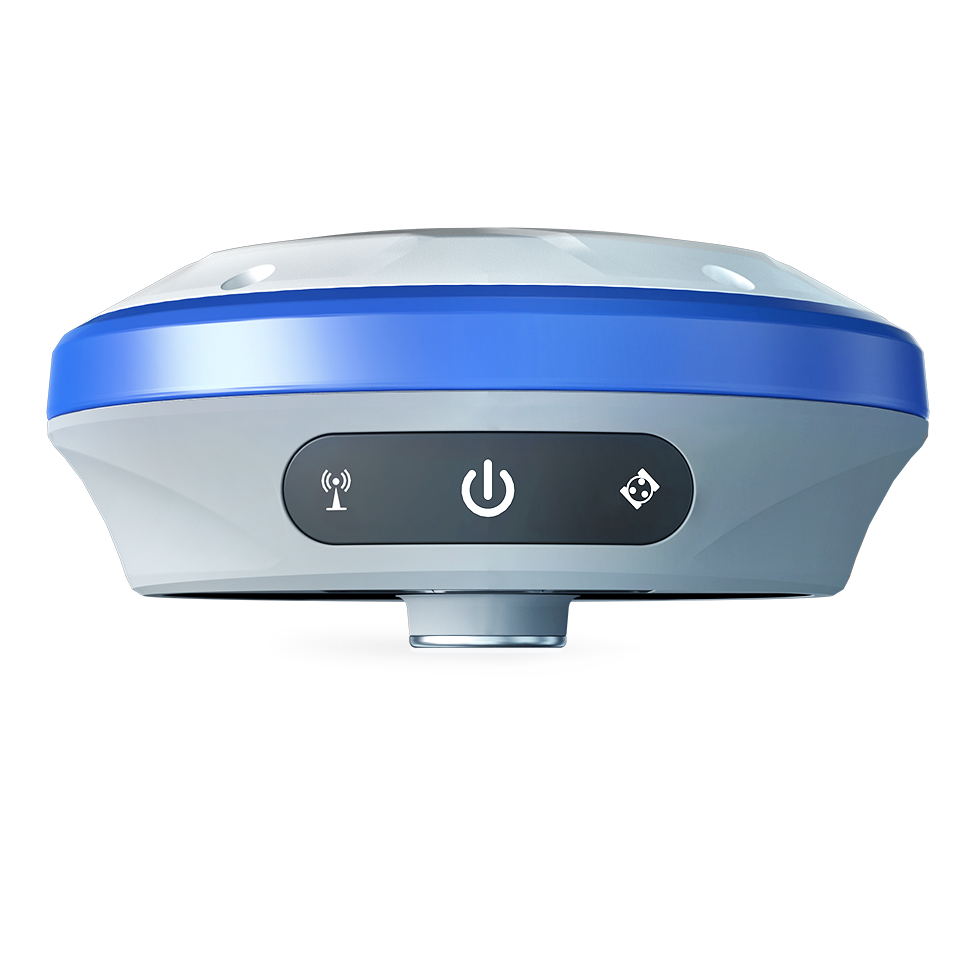

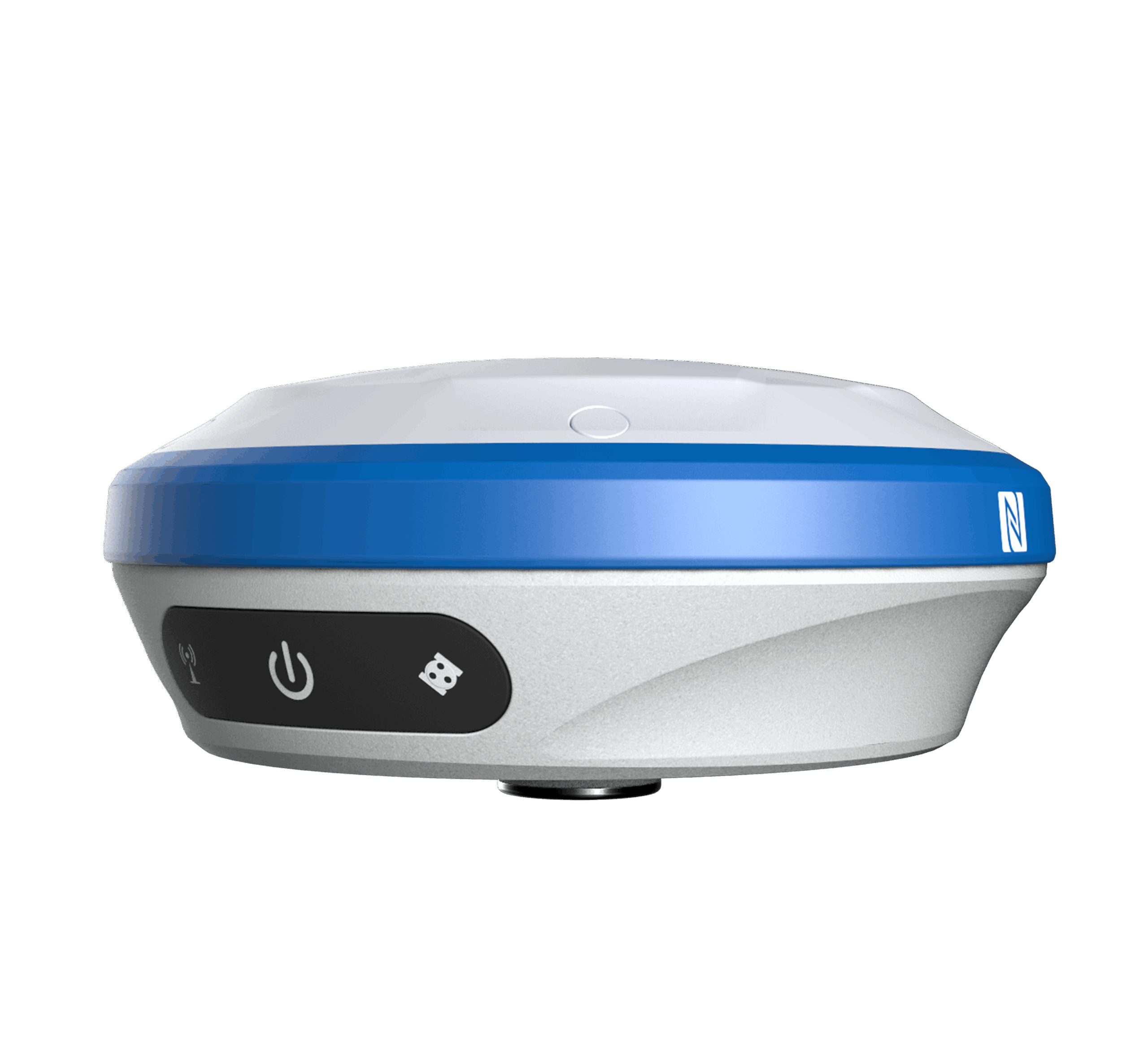

T10Pro is a latest portable multifunctional GNSS receiver, a new generation of measurement engine, supporting tilt measurement, NFC, built-in 4G Modem, Bluetooth and WIFI. It adopts a new appearance design, magnesium alloy structure and Linux operating system. It is an extremely light-weight, fully functional and portable geodesic GNSS receiver.
Key Features Of T10 Pro GNSS Receiver
PPP Supported
Precise Point Positioning (PPP): Leverages precise satellite orbit/clock products for single-receiver positioning, which allows to acquire high precision position anywhere on earth without any subscription.
Multi Constellation
With its 1408 channels, T10Pro provides an excellent on board real time navigation solution with high accuracy. All GNSS signals (GPS, GLONASS, BDS, GALILEO, QZSS, SBAS and IRNSS) are included.
Tilt Measurement
T10Pro has the IMU module. Fast initialization and up to 60° inclination.
Combined Antenna
The new four in one antenna integrates GNSS, WIFI, Bluetooth and 4G, with smaller volume and better signal.
PPK Processing Supported
PPK processing is supported when there is no stable RTK data link available.
Long Endurance
Built-in high-capacity lithium battery ensures continuous working time of more than 16 hours under normal operation.
IP68 Design
Industrial design, solid magnesium alloy shell, in line with IP68 design requirements, safe and reliable.
Linux Intelligent System
ARM Cortex-A7 + Linux, the intelligent system platform, brings efficient computing and unlimited expansion of product functions to users.
4G Modem
T10Pro has an internal 4G Modem that operates with more cellular network signals. A fast internet connection is guaranteed.

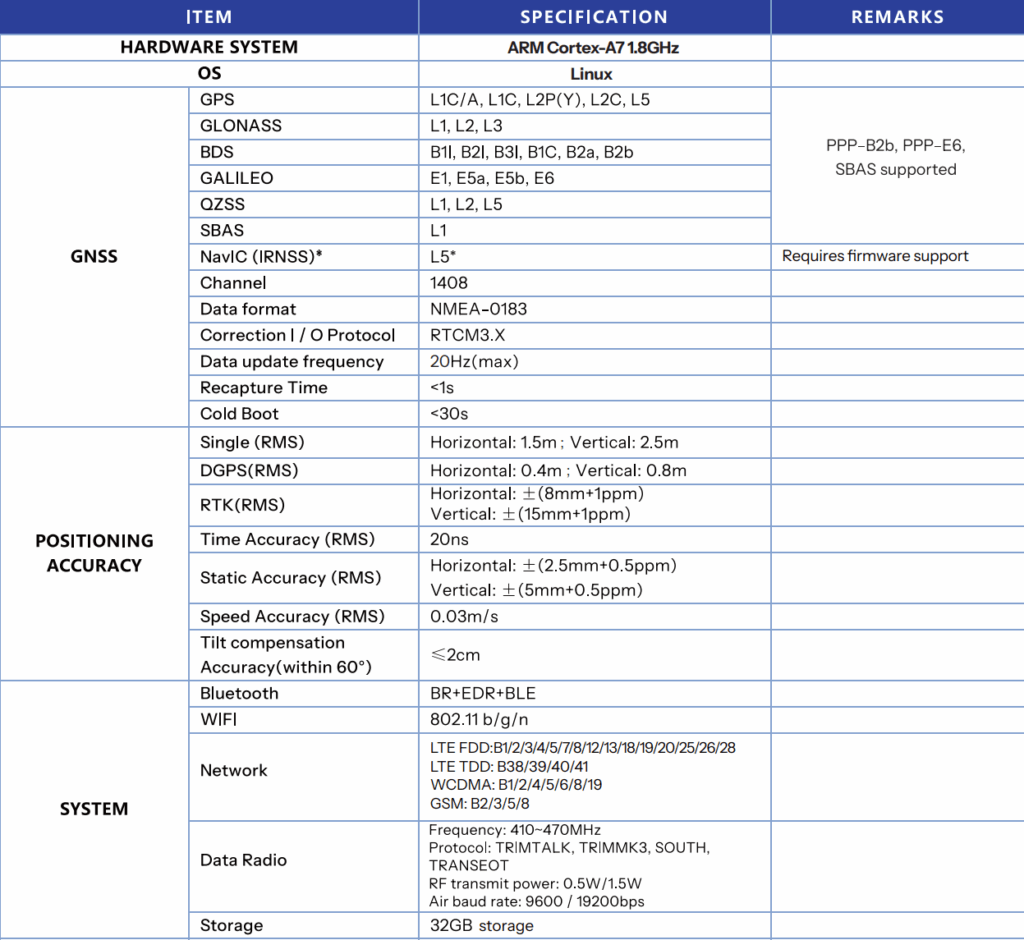

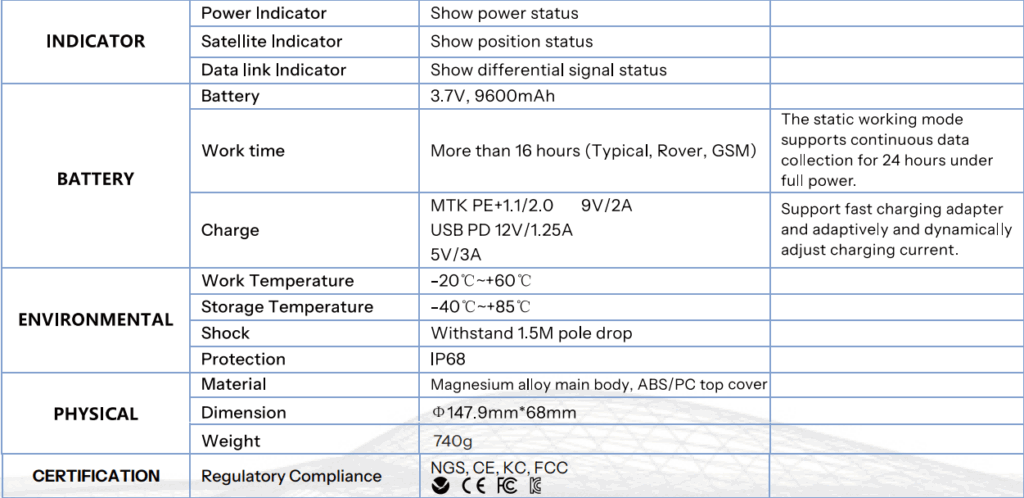

Technical Parameters
Downloads & Tutorials
TSurvey 2.0 Survey Software Tutorial
T10Pro Unbox and Test Videos
Unbox & Test Videos for T10 Pro GNSS Receiver
2:04
0:58
21:34
