TokNAV – Economical GNSS Rovers – T5 Series- Global Shipping

Price range: US$1,850.00 through US$2,000.00 Excl. GST/VAT

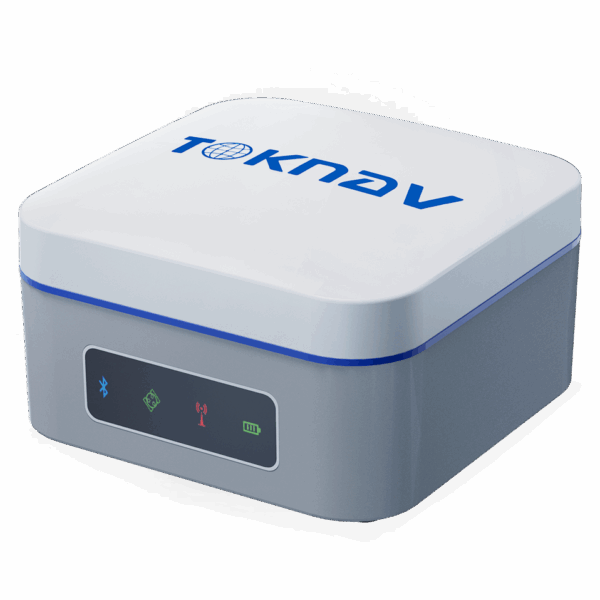

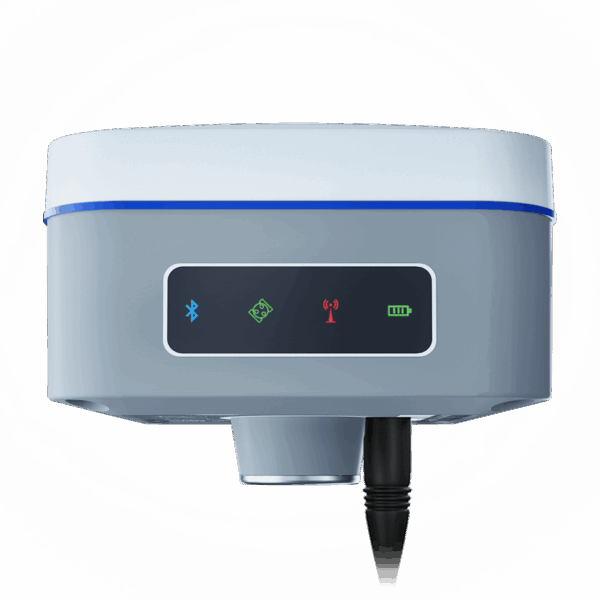

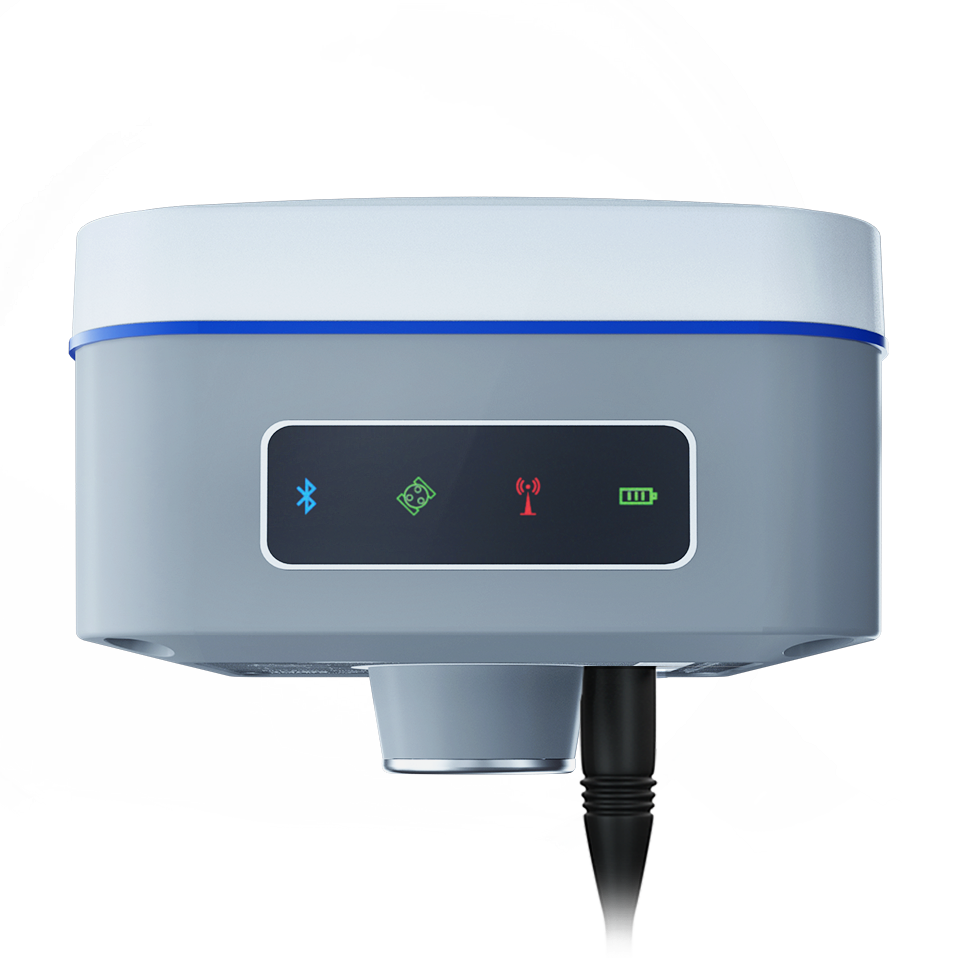

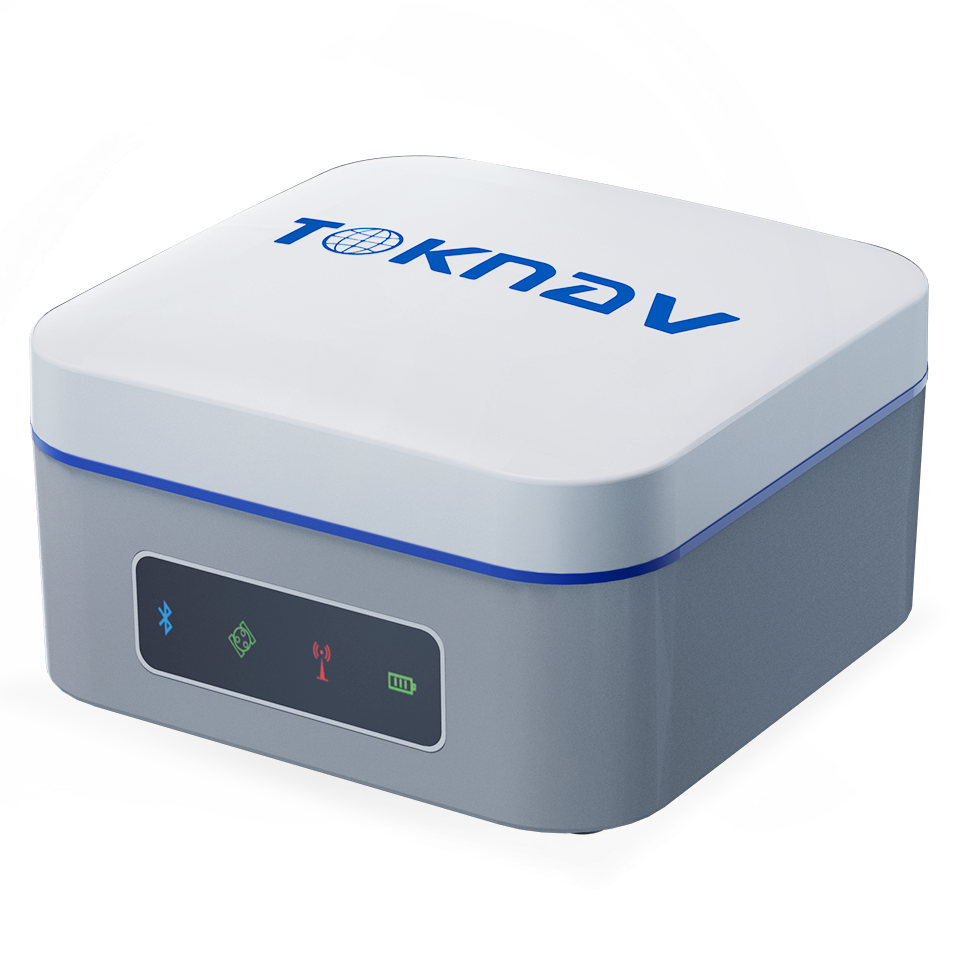

T5 is a mini portable multifunctional GNSS receiver, a new generation of measurement engine, supporting tilt measurement, built-in 4G Modem, radio, Bluetooth and WIFI. It adopts a new appearance design, magnesium alloy structure and Linux operating system. It is an extremely light-weight and portable geodesic GNSS receiver.

Delivery Terms:

DDP, Australia;

DAP, Global shipping except Australia

Warranty:

OEM Warranty, 2 year;

Lead Time:

2 weeks plus transport.

US$2,000.00 Excl. GST/VAT
US$1,850.00 Excl. GST/VAT

Key Features Of T5 GNSS RTK Rover

T5 LITE GNSS RECEIVER DIMENSIONS
T5 Lite GNSS Receiver Dimensions
T5 GNSS Receiver Dimensions



T5 series RTK Rover GNSS receiver is a ROVER ONLY receiver, and they don’t support BASE STATION MODE. T5 Lite receiver can only support CORS and PPP RTK connection, and T5 receiver can also radio connection on top of CORS and PPP RTK;

If you are looking for GNSS receiver with both ROVER and BASE STATION function, please consider TokNAV T10 Pro GNSS receiver;

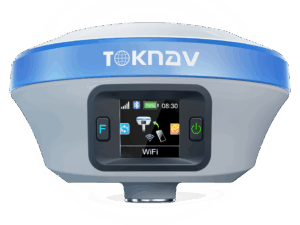

If LCD touch screen function is required on site, please upgrade to T20 Pro;

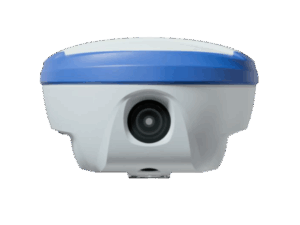

If laser, AR stakeout, or image survey are required for site application, please upgrade to T30 or T40 series;

PPP Supported

Precise Point Positioning (PPP): Leverages precise satellite orbit/clock products for single-receiver positioning, which allows to acquire high precision position anywhere on earth without any subscription.

Multi Constellation

With its 1408 channels, T5 provides an excellent on board real time navigation solution with high accuracy. All GNSS signals (GPS, GLONASS, BDS, GALILEO, QZSS, SBAS and IRNSS) are included.

Tilt Measurement

T5 has the IMU module. Fast initialization and up to 60° inclination.

Combined Antenna

The new four in one antenna integrates GNSS, WIFI, Bluetooth and 4G, with smaller volume and better signal.

PPK Processing Supported

PPK processing is supported when there is no stable RTK data link available.

Long Endurance

Built-in high-capacity lithium battery ensures continuous working time of more than 16 hours under normal operation.

IP65 Design

Industrial design, solid magnesium alloy shell, in line with IP65 design requirements, safe and reliable.

Linux Intelligent System

ARM Cortex-A7 + Linux, the intelligent system platform, brings efficient computing and unlimited expansion of product functions to users.

4G Modem

T5 has an internal 4G Modem that operates with more cellular network signals. A fast internet connection is guaranteed.

Technical Parameters

T5 Unbox Video

Unbox & Test Videos for T5 GNSS Receiver

1 Videos

Package And Sets

T5 Lite GNSS Rover Set

Packing List:

1 unit of T5 Lite Rover;

1 unit of T5 Lite controller;

1 unit of  controller bracket;

1 unit of  charger and USB-C cable;

T5 GNSS Rover Set

Packing List:

1 unit of T5 Rover;

1 unit of T5 controller;

1 unit of  controller bracket;

1 unit of  charger and USB-C cable;
